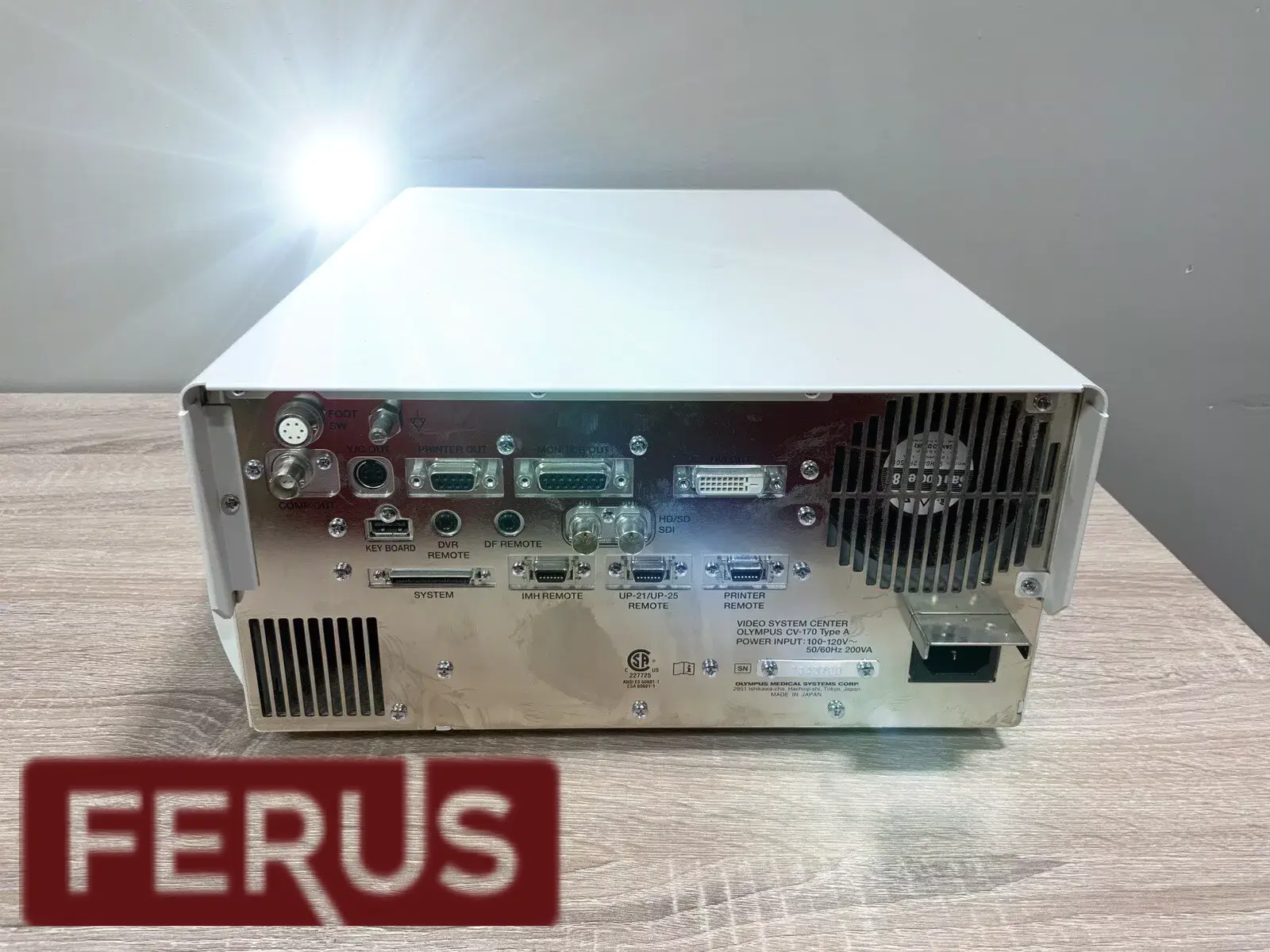

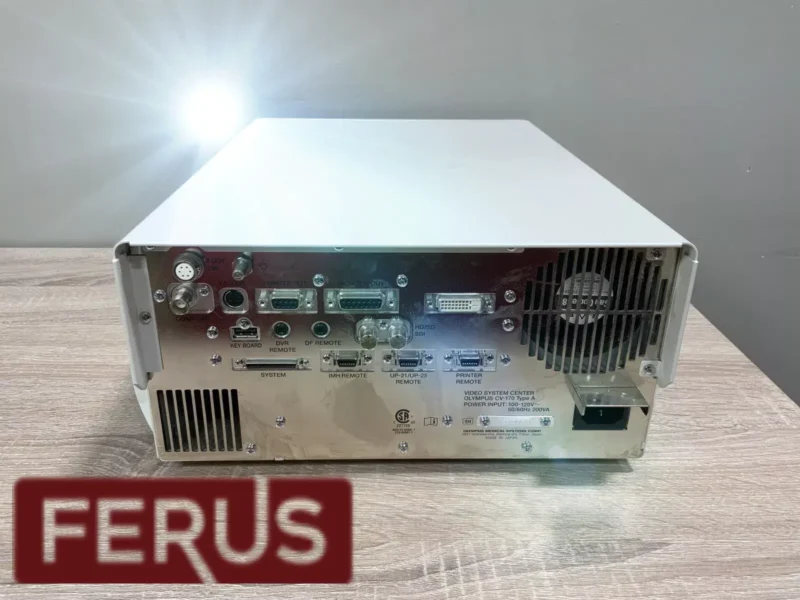

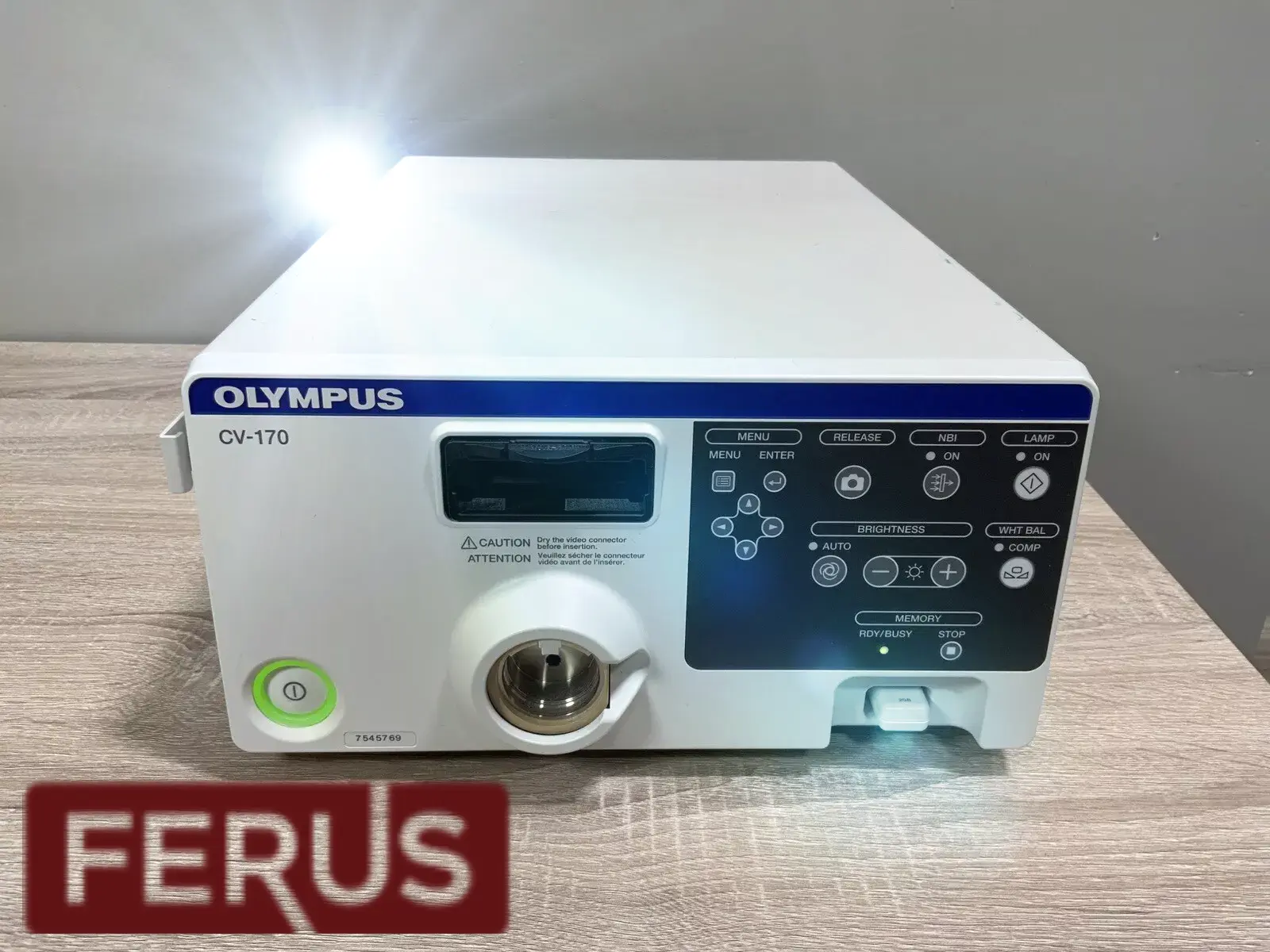

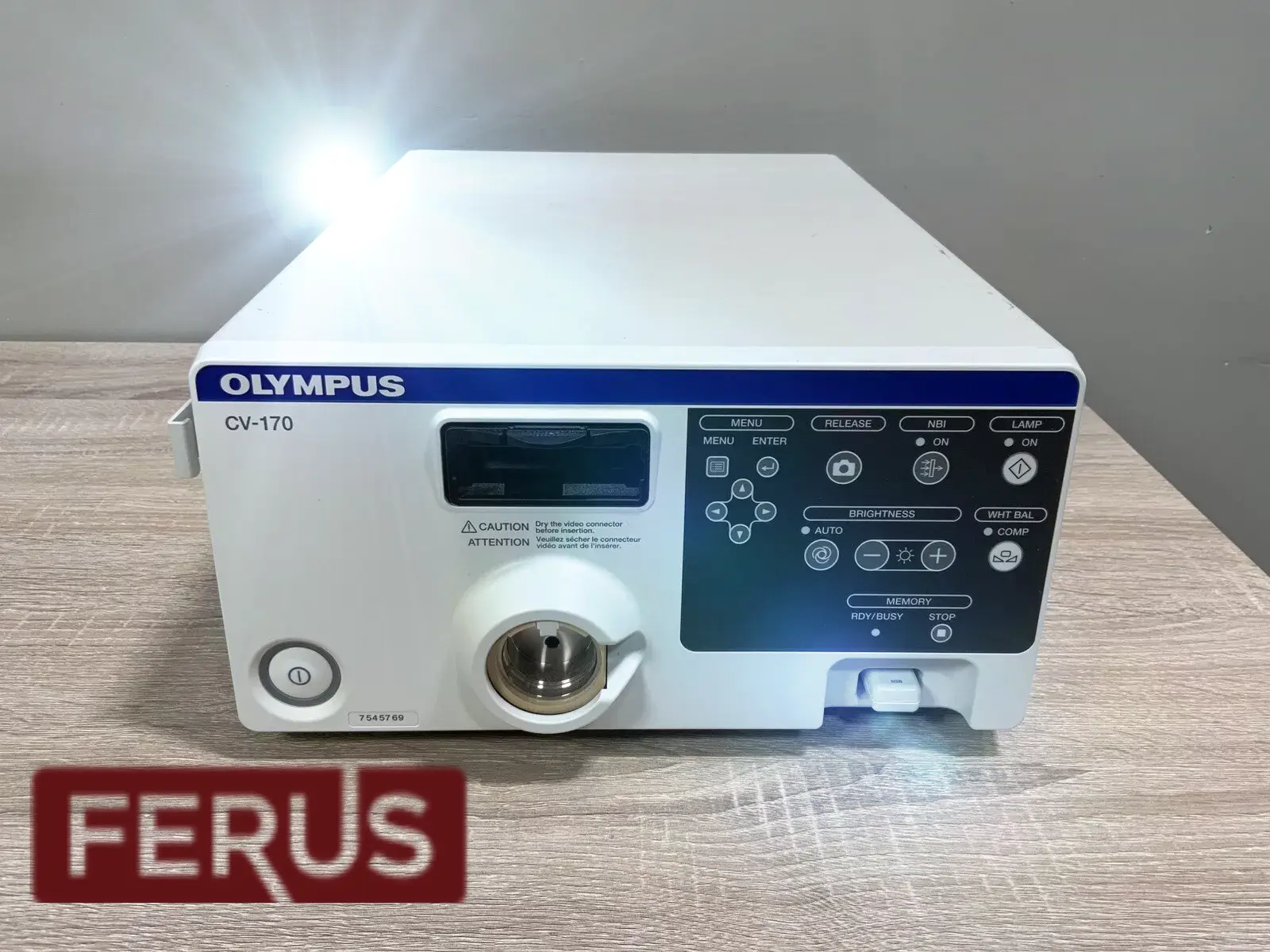

Olympus CV-170 Video Processor and LED Light Source

Description

The Olympus CV-170 is an advanced video processor and endoscopy system designed for use in medical diagnostics and procedures. It is part of Olympus’ lineup of medical equipment, particularly for endoscopy.

Begin with an overview of the Olympus CV-170, emphasizing its role in modern endoscopic procedures. Highlight its compact design, efficiency, and advanced imaging capabilities, which make it a preferred choice in various medical environments.

https://www.youtube.com/watch?v=Fopu37DeY7E

Key Features of the Olympus CV-170

• High-Quality Imaging: Explain how the CV-170 delivers clear, high-resolution images crucial for accurate diagnostics. Emphasize its capabilities in enhancing subtle features, which is important in identifying pathologies.

• Dual Focus Technology: Discuss the system’s innovative dual focus technology, which allows for a detailed view of mucosal structures.
• LED Light Source: Highlight the long-lasting LED light source, providing bright, consistent illumination while energy-efficient.
• User-Friendly Interface: Mention its intuitive interface, allowing straightforward operation and efficient procedure workflows.
• Narrow Band Imaging NBI: Thanks to the ability of hemoglobin to absorb light of a certain wavelength and scatter it in biological tissues, thereby contrasting blood vessels and mucosal structures, the CV-170 Optera is a powerful tool for the early diagnosis of cancer and focal mucosal lesions. Olympus uses two wavelengths, 415 nm (blue) and 540 nm (green), to maximize the photochromic function of hemoglobin.

Applications in Medical Labs and Clinics

Detail how the Olympus CV-170 is utilized in various medical procedures:

• Gastroenterology: For endoscopic examinations like gastroscopies and colonoscopies.
• Ear, Nose, and Throat (ENT): In ENT procedures, providing detailed views of the throat and nasal passages.

Advantages of Using the Olympus CV-170

• Diagnostic Precision: Emphasize the system’s ability to provide clear and detailed images, leading to more accurate diagnoses.
• Cost-Efficiency: The long-lasting LED light source reduces the need for frequent replacements and maintenance, making it a cost-effective choice.
• Compact and Versatile: Its compact design suits various clinical environments, including smaller clinics and mobile medical units.
• Ease of Use: Highlight how its user-friendly nature makes it accessible to a range of medical professionals.

Include:

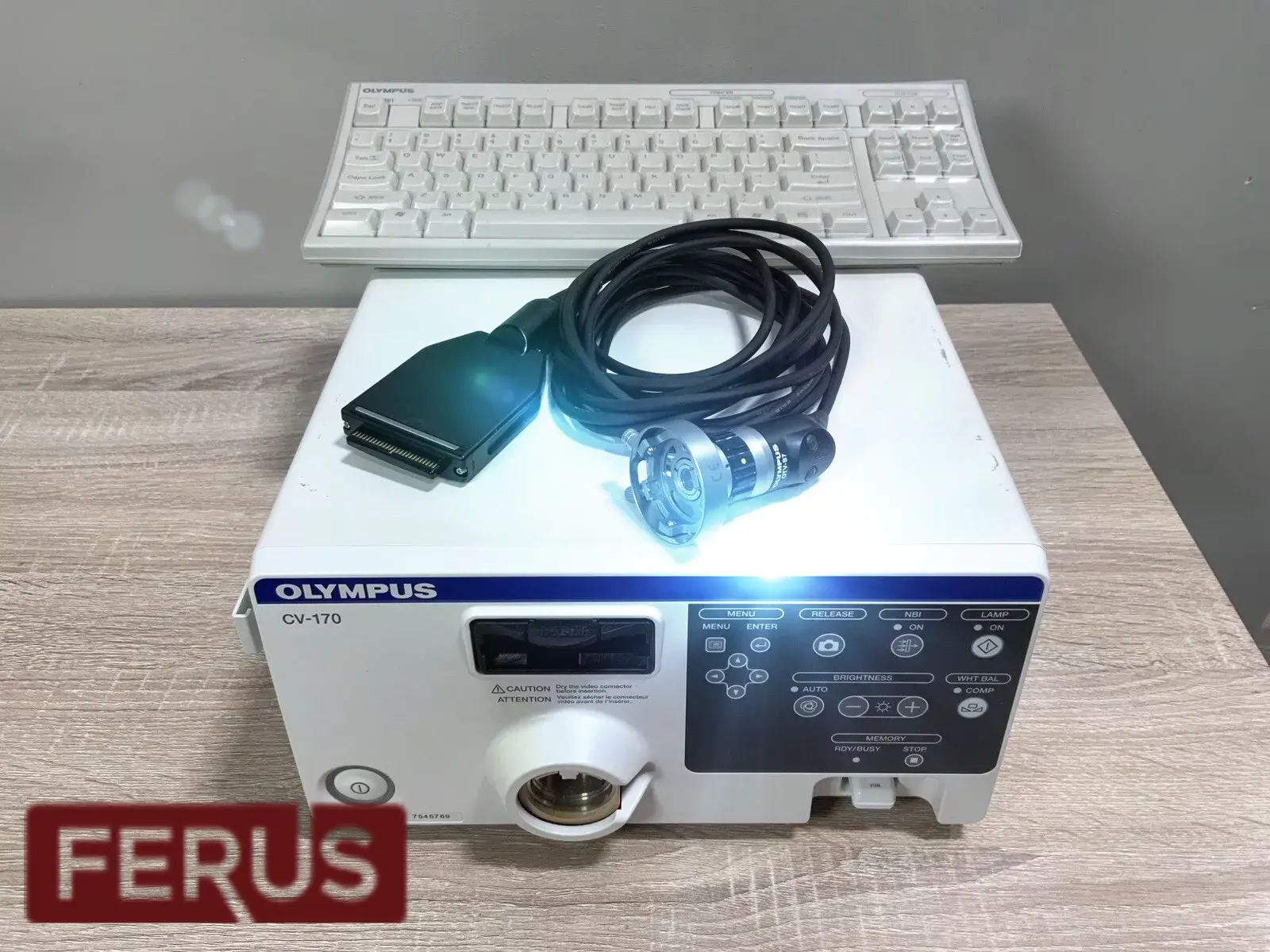

• CV-170 – video endoscopic processor CV-170 Optera
• Power cable

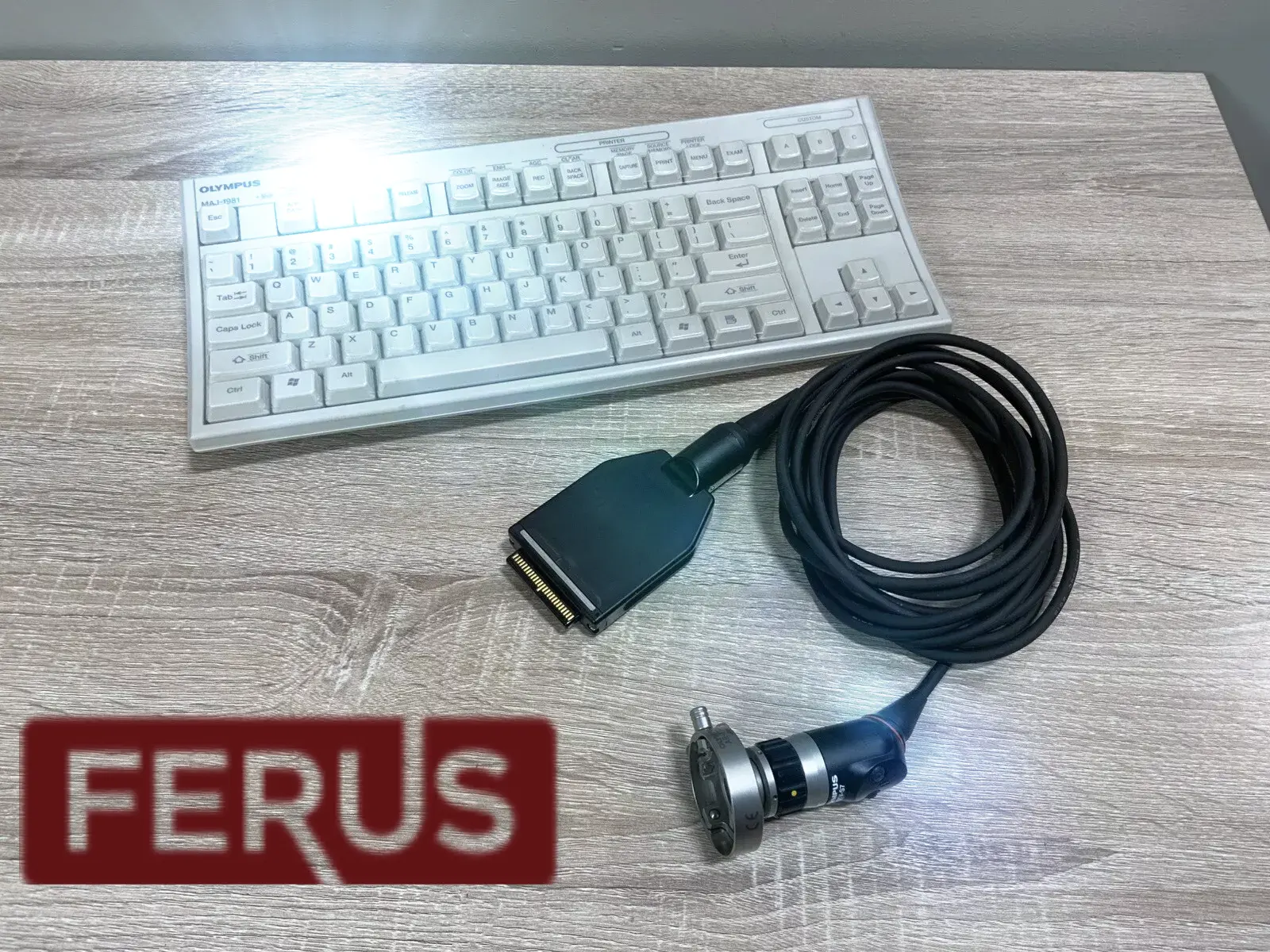

• MAJ-2004 – keyboard
• MAJ-901 – water container (not used when working with video bronchoscopes)
• MH-155 – white cap
• MAJ-1925 – removable storage device

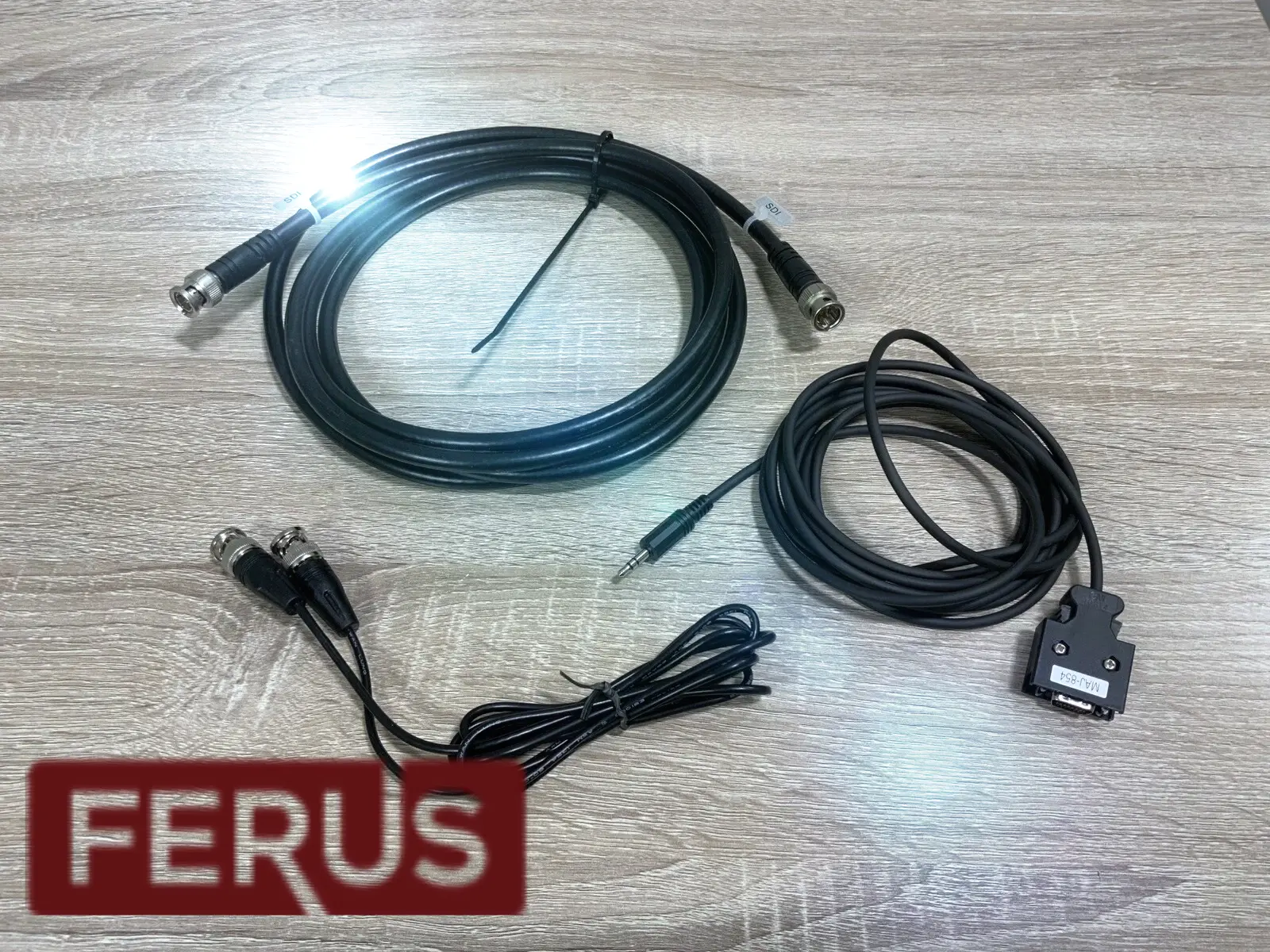

• MAJ-1951 – SDI cable
• Manual
• MAJ-1391 – foot switch

Specifications:

Video System & Ancillary Devices
CV-170	All-in-One HD Video System w/LED & NBI
MAJ-1981	Olympus Keyboard
MAJ-1925	Olympus 2GB USB Portable Memory
MAJ-438	Remote Accessory Cable
MAJ-1981	Olympus Keyboard
MAJ-1925	Olympus 2GB USB Portable Memory
LMD-2110MD/OL	21.5″ LCD HD Widescreen Medical Grade Monitor
USB200	SD Image/Video Capture to USB Drive
IS40950	nStream DX V9.0 Image and Video Recording with DICOM
UP-25MD	Sony Color Video Printer, small format (for office use)
TC-C2-PS	Primary Endoscopy procedure cart with power supply and keyboard tray
AR-T10E	Coupler
AR-T12E Coupler	All-in-One HD Video System w/LED & NBI
ENF-VH	HD Rhinolaryngoscope
Product Specs
Power Supply
Voltage	100-240V AC: within +/- 10%
Frequency	50/60 Hz: within +/- 1 Hz
Rated	Input 200 VA
Size
Dimensions	(W x H x D) 295 x 145 x 425 mm (W x H x D)
Weight	11.0 kg
Observations
Examination Lamp	LED Lamp
Analog HDTV signal output	Either RGB (1080/60I: NTSC)/(1080/50I: PAL) or YPbPr (1080/60I: NTSC)/(1080/50I: PAL) output can be selected.
Analog SDTV signal output	VBS composite (480/60I: NTSC)/(576/50I: PAL), Y/C (480/60I: NTSC)/(576/50I: PAL), and RGB (480/60I: NTSC)/(576/50I: PAL): simultaneous outputs possible.
Digital signal output	HD-SDI (SMTPE 292M), SD-SDI (SMPTE 259M) and DVI (WUXGA, 1080p or SXGA) can be selected.
White balance adjustment	White balance adjustment is possible using the white balance button on the front panel.
Color tone adjustments	Red adjustment: ±8 steps, Blue adjustment: ±8 steps, Chroma adjustment: ±8 steps
Automatic gain control (AGC)	The image can be electronically amplified when the light is inadequate due to the distal end of the endoscope being too far from the object.
Noise reduction	Noise is corrected by image processing
Iris	The auto iris modes can be selected using the “iris mode” switch on the front panel. Peak: The brightness is adjusted based on the brightest part of the endoscopic image. Average: the brightness is adjusted based on the average brightness of the endoscopic image.
Image enhancement setting	Fine patterns or edges in the endoscopic images can be enhanced electrically to increase the image sharpness. Either the structural enhancement or edge enhancement can be selected according to the user setup Structural enhancement: Enhancement of contrast of the fine patterns in the image. Edge enhancement: Enhancement of edges of the endoscopic image.
Freeze	An endoscopic image is frozen using an endoscope or the “FREEZE” key on the keyboard
NBI Observation	This is one of optical-digital observations using the narrow band observation light
Remote control	DVR, Video printer, Image filing system, Flushing pump, Endoscopic CO2 regulation unit can be controlled (specified models only).
Documentation
Patient data	Patient ID, Patient name, Sex, Age, Date of birth, Date of recording (time, stopwatch), Comments can be displayed in the endoscopic image screen.
Displaying the record state	Portable memory and internal buffer, DVR, Video printer, Image filing system can be displayed on the monitor.
Advance registration of patient data	Patient ID, Patient name, Sex and age, Date of birth of up to 50 patients can be registered.
Portable Memory
Media	MAJ-1925 (OLYMPUS)
Recording Format	TIFF: no compression, JPEG (1/5): approx. 1/5 compression, JPEG (1/10): approx. 1/10 compression
Number of recording images	TIFF: approx. 227 images, JPEG (1/5): approx. 1024 images, JPEG (1/10): approx. 2048 images

Conclusion

Conclude by reinforcing the Olympus CV-170’s role in advancing endoscopic diagnostics, emphasizing its combination of high-quality imaging, cost-efficiency, and user-friendliness.

Reference

• Manufacturer information
• Brochure
