Olympus EVIS X1 CV-1500 Video System Center

$29,999.00-25% OFF

Experience Precision and Clarity with the Olympus Evis X1. Explore 4K Ultra-High-Definition Imaging, NBI, and Workflow Efficiency for Enhanced Endoscopic Procedures.

In stock

SKU: EVIS X1 Category: Tag:
SHARE

Description

EVIS X1 is a groundbreaking medical imaging system that has set new standards in the world of endoscopy. This advanced device empowers healthcare professionals with cutting-edge technology, delivering superior visual clarity and precision during diagnostic and therapeutic procedures.

“Evis X1 is intuitive and gives endoscopists a range of innovative and proven tools to carry out minimally invasive, precise and effective procedures – enabling them to make truly-informed diagnostic and treatment decisions in the best interest of their patients. Among the new technologies especially TXI looks promising. It seems to provide more information to the endoscopist while maintaining a close to white light appearance. This will make it very easy to adapt to it.”

Michal Kaminski,  National Research Institute of Oncology in Warsaw

EVIS X1 is designed to fight cancer in the early stages for reliable and accurate diagnosis of precancerous conditions for precise and easy screening. In the endoscopic system, EVIS X1 introduced the latest, easy-to-use technologies to identify, evaluate, and treat gastrointestinal tract diseases, such as colorectal cancer (CRC) and respiratory diseases. As a technological market leader, Olympus develops future technologies, including artificial intelligence ( AI).

EVIS X1 Key Features:

  1. 4K Ultra-High-Definition Imaging: The Evis X1 offers 4K UHD imaging, providing unparalleled visual detail and real-time clarity. This enables healthcare practitioners to visualize tissues and structures with remarkable precision, enhancing diagnostic accuracy.
  2. Narrow-Band Imaging (NBI): NBI technology improves the visualization of blood vessels and mucosal patterns, making detecting subtle lesions and abnormalities easier. This feature is crucial for early diagnosis and effective treatment.
  3. Responsive Touchscreen Interface: The system boasts an intuitive and responsive touchscreen interface, ensuring ease of use for medical professionals. It simplifies the operation, allowing practitioners to focus on patient care.
  4. Versatile Endoscope Compatibility: The Evis X1 is compatible with a wide range of Olympus endoscopes, making it adaptable to various procedural requirements across different medical specialties.
  5. Advanced Image Processing: The system incorporates algorithms that optimize image quality, reducing artifacts and enhancing overall clarity, even in challenging clinical scenarios.
  6. Durable and Reliable Design: Built to withstand the rigors of a busy medical environment, the Evis X1 is constructed for reliability and longevity, minimizing maintenance and replacement costs.

Benefits:

  1. Exceptional Visual Clarity: With 4K UHD imaging and NBI technology, the Evis X1 provides healthcare professionals with unmatched visual clarity, aiding in precise diagnoses and effective treatments.
  2. Efficient Workflow: The responsive touchscreen interface and user-friendly controls streamline the endoscopy process, reducing patient discomfort and procedure duration.
  3. Cost-Effective: The system’s durability and reliability contribute to reduced maintenance and replacement costs, making it a cost-effective choice for healthcare facilities.
  4. Adaptability: The Evis X1’s compatibility with various endoscopes ensures its suitability for various medical procedures, making it a versatile solution for healthcare providers.
  5. Clinical Confidence: Healthcare professionals can have confidence in the Evis X1, knowing they can access advanced technology that delivers superior imaging quality.

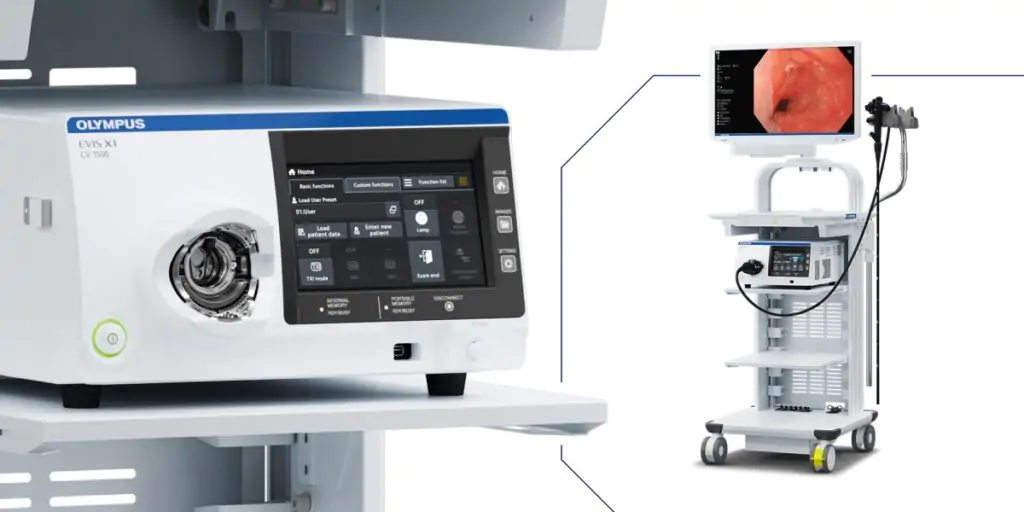

olympus-cv-1500

EVIS X1 supports accurate screening and confident diagnosis by introducing new and easy-to-use technologies to help how gastrointestinal disorders, such as colorectal cancer (CRC), or bronchial diseases, are detected, characterized, and treated.

These include Extended Depth of Field (EDOF), Red Dichromatic Imaging (RDI), Texture and Color Enhancement Imaging (TXI), as well as the already known and proven Narrow Band Imaging (NBI). Being committed to innovation, Olympus is also already developing future technologies, mainly featuring artificial intelligence (AI).

Include:

  • Video processor Olympus CV-1500.
  • Videogastroscope Olympus GIF-EZ1500.
  • Videocolonoscope Olympus CF-EZ1500DL.
  • video monitor Olympus OEV321UH.
  • Rack endoscopic Olympus WM-NP3.

Specifications:

Power Supply Rated voltage 100-240 V AC; Within ±10%
Frequency 50/60 Hz; within ±3 Hz
Rated input 600 VA
Size Dimension (W x H x D) 370 x 198 x 488 mm

398 x 218 x 580 mm (maximum)

Weight 19.4 kg
Classification (Medical Electrical Equipment) Type of protection against electric shock Class I
Degree of protection against electric shock of applied part Depend on applied part. (The degree of protection against electric shock of this product is BF type if the mounting part to be connected to this product is BF type. However CF type is not subject to combination in this product.)
Degree or protection against explosion The video system center should be kept away from flammable gases.
Observation Analog signal output VBS composite
Digital signal output 12G-SDI

3G-SDI

HD-SDI

SD-SDI

User settings The function settings for up to 20 users can be stored.
Color tone adjustment Adjust the color tone of each endoscopic image for White light observation mode, NBI Technology observation mode, and RDI Technology observation mode.

Red adjustment : ±8 steps · Blue adjustment : ±8 steps · Chroma adjustment : ±8 steps

Automatic gain control (AGC) The image can be electronically amplified when the light is inadequate due to the distal end of the endoscope being too far from the object.
Contrast H (High): Darkens the dark part and brightens the bright part.

L (Low): Brightens the dark part and darkens the bright part.

BAI-MAC Brightness adjustment with the maintenance of contrast
Iris The iris modes can be switched. ·

Auto: The brightness is adjusted based on the central part’s brightest part and the periphery part’s average brightness. ·

Peak: The brightness is adjusted based on the brightest part of the endoscopic image.

Average: The brightness is adjusted based on the average brightness of the endoscopic image.

Image enhancement settings Fine patterns or edges in the endoscopic images can be enhanced electrically to increase the image’s sharpness.
· Enhancement type A : Emphasizes the pattern and contour of the endoscopic image.
· Enhancement type B : Emphasizes the finer parts than structure emphasis type A.
Switching the enhancement modes The enhancement level can be selected from 3 levels (OFF, 1, 2, and 3)
Image size selection The size of the endoscopic image can be selected from 2 modes. (Except SDTV)
Electric zoom Switch between mode 1, mode 2, and mode 3.
PIP/POP Switch between PIP and POP.
Aspect ratio Switch between 16:9 and 4:3. (Except SDTV)
Freeze Freeze the endoscopic image.
Pre-freeze The image with the least blur is selected from the images captured in the set time period before freeze operation and displayed.
Optical-digital observation The optical-digital observation can be performed. An endoscope compatible with the optical-digital observation is required.
NBI Technology observation: This observation mode uses the narrow-band light. ·

RDI Technology observation: This observation mode uses the red dichromatic lights. ·

TXI Technology observation: This observation mode enhances color, texture and brightness.

Beginning and ending examination Beginning and ending examination timing can be set interlock with the particular operation.
Custom switch Assign specific functions to the following buttons. · Remote switches (Up to 5) · Foot switches (Up to 2) · Keyboard custom key (Up to 4) · Touch panel custom button of basic functions screen (Up to 3) · Touch panel custom button of custom functions screen (Up to 10)
MyCV mode Switch setting values of multiple functions at once.
Documentation Remote control The following peripheral device can be controlled (specified models only).
· Portable memory · Video recorder · Color video printer · Image filing system · Server
Patient information The following data can be displayed on the monitor. · Patient ID · Patient name · Gender · Age · Date of birth · Comment
Displaying the record state The recording state of the following peripheral device can be displayed on the monitor. · Portable memory: Remaining capacity
· Video recorder: Number of shots / Recording status · Color video printer: Number of shots · Image filing system: Number of shots
Displaying the image information The following data can be displayed on the monitor. · Image enhancement · Electric zoom ratio · Color mode · Focus · Observation mode
Advanced registration of patient information Up to 50 patient information can be registered. · Patient ID · Patient name · Gender · Age · Date of birth
Recording format Standard image quality: TIFF; Low image quality: JPEG
Memory Backup Memorization of user settings The settings are held in memory even after the video system centre is turned OFF.
White balance The white balance that is once set is held in memory (only when using the compatible endoscope)

Conclusion:

The Olympus Evis X1 medical imaging system represents a significant leap forward in endoscopy technology. Its 4K UHD imaging, NBI capabilities, user-friendly design, and adaptability empower healthcare professionals to deliver exceptional patient care. Investing in the Evis X1 means investing in the future of healthcare, where precision and innovation lead to better patient outcomes.
