Description
The EVIS LUCERA ELITE Gastrointestinal Videoscope GIF-HQ290 revolutionises routine endoscopy by providing ground-breaking advanced diagnostic features in an easy-to-use routine endoscope.
The GIF-HQ290 combines features like Dual Focus and brighter Narrow Band Imaging. This makes it a powerful diagnostic tool in a regular endoscope. The endoscope has advanced diagnostic features. It also has ergonomic improvements that make it easier to handle during the whole workflow.
The GIF-HQ290 gastroscope is a flexible and reliable tool. It has dual focus and better image quality. It also has a water jet for a clearer view. This makes it a very advanced tool for regular endoscopy.
Features:
- Model: GIF-HQ290
- Field of view: Normal focus mode 140°
- Near focus mode 140°

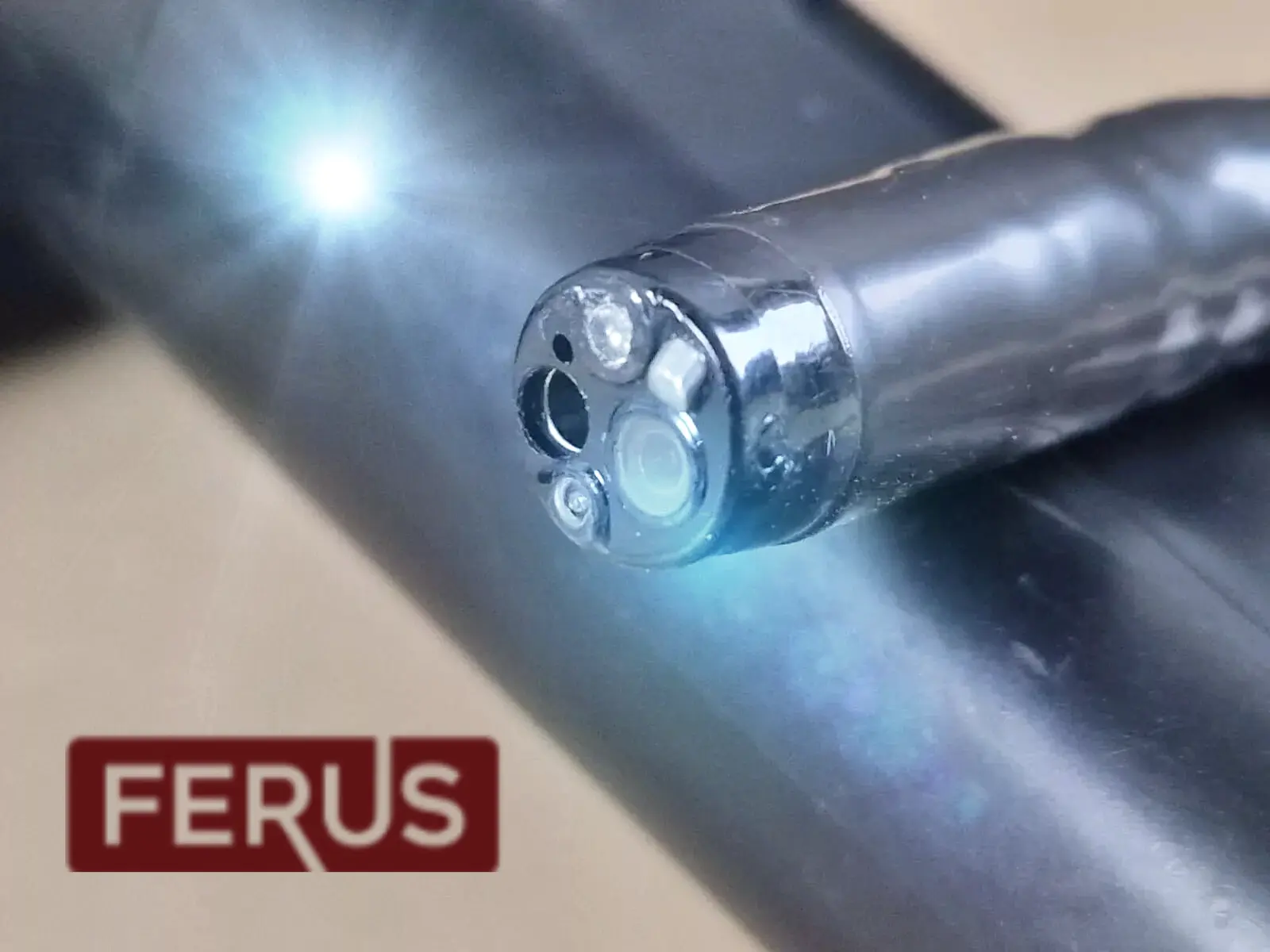

- Distal End outer diameter: 10.2mm
- Working length: 1,030mm
- Total Length: 1,350mm
- Angulation range: Up 210°
- Down 90°
- Right 100°
- Left 100°
Benefit
Dual Focus
Dual focus, a unique OLYMPUS optical innovation, allows the user to select from two focus settings. With the simple push of a scope button, the desired depth of fi eld for observation can be optimized to either the near field or normal field.
Enhanced Image Quality
A new level of resolving power is achieved thanks to a new optical system. The combination of the scope and the system provides superior imaging.
Water Jet for a clearer view

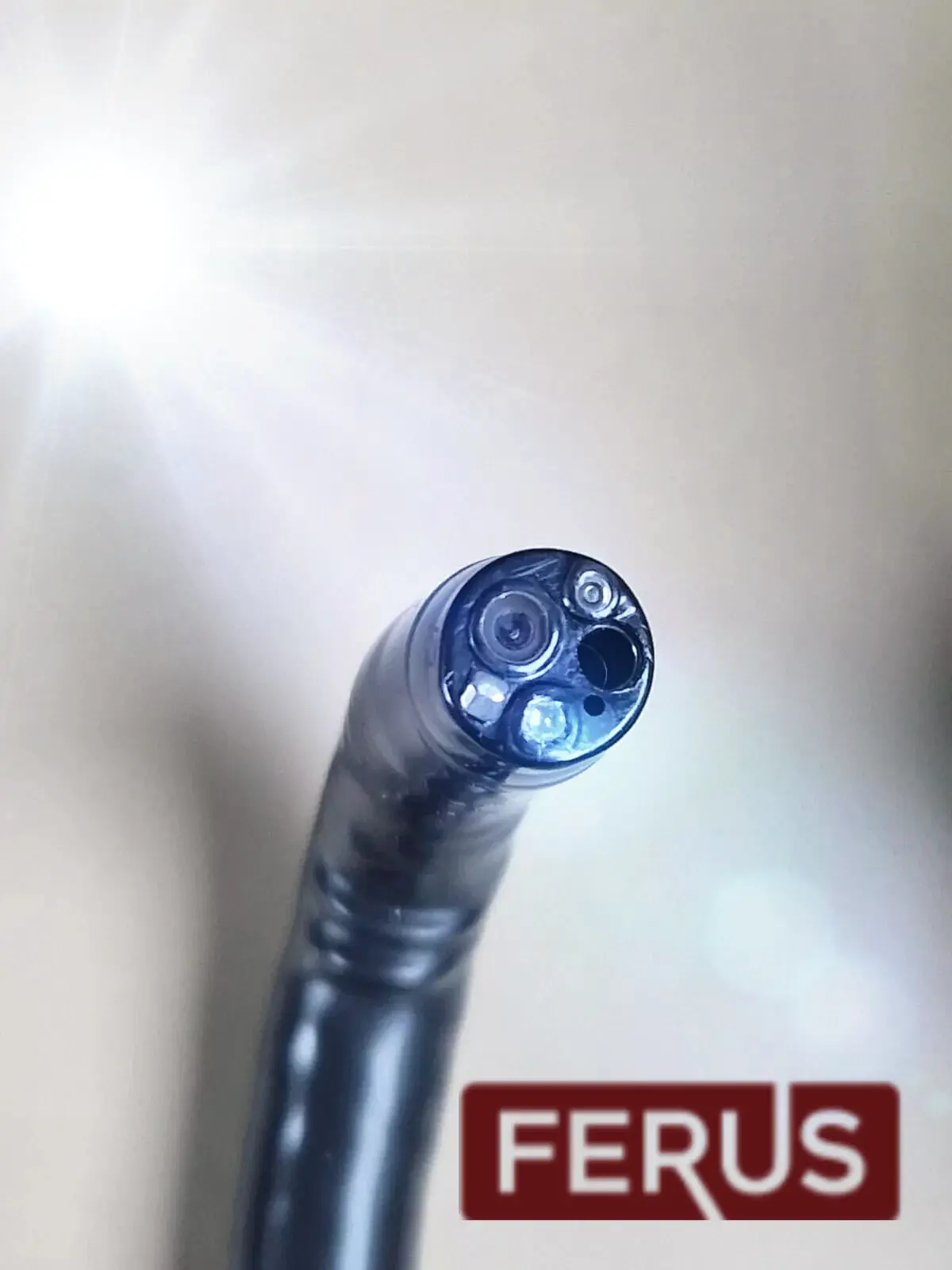

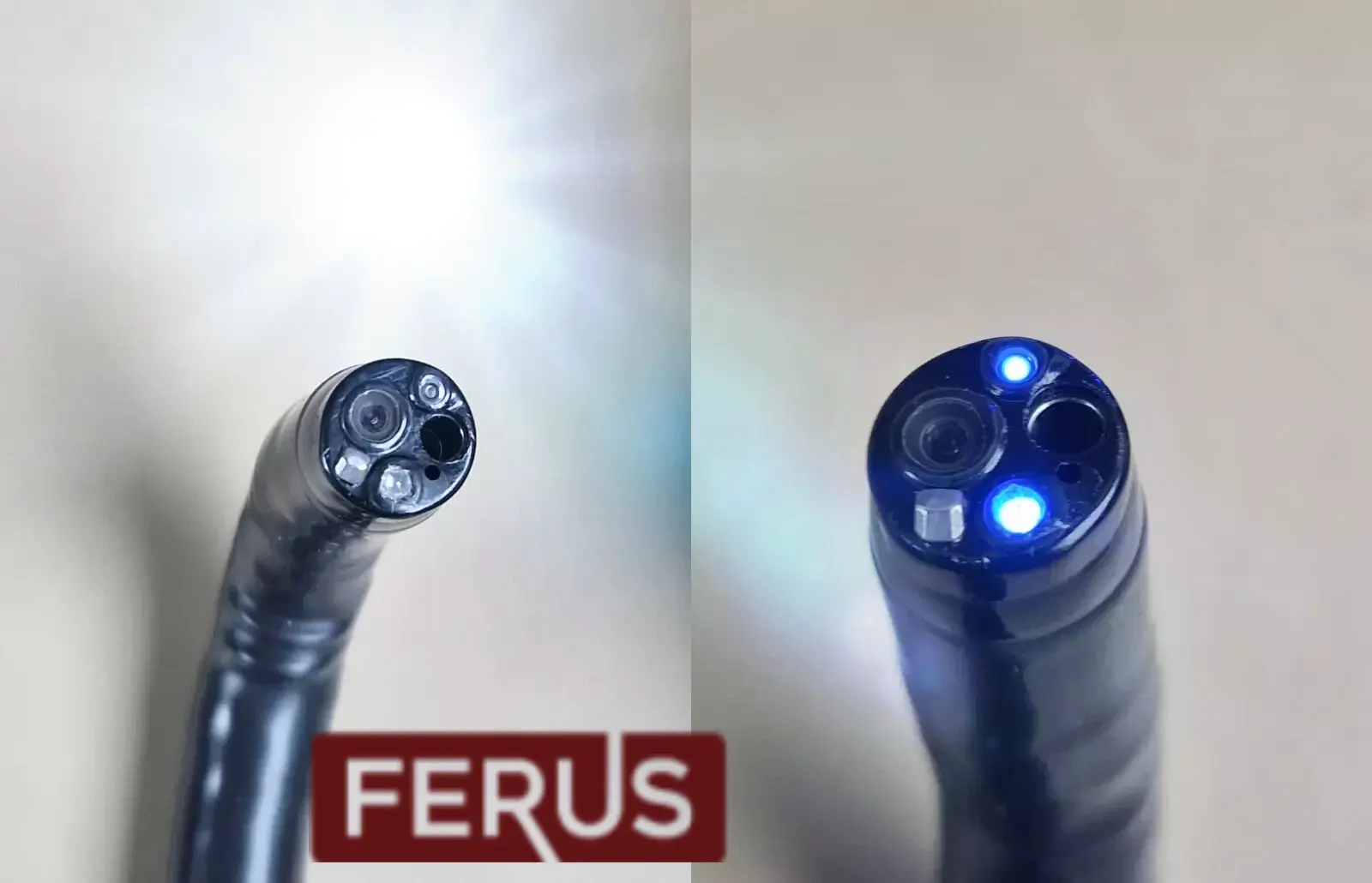

A forward water jet helps to keep the mucosa clear during observation and treatment in the upper GI tract.
Report:
- -Leak Test: Pass
- -Image Test: Pass
- -Light Guide: Pass
- -Angulation Test: Pass
Specifications:
| Optical System | Field of view | Normal focus mode 140° Near focus mode 140° |
|---|---|---|
| Direction of view | Forward viewing | |
| Depth of field | Normal focus mode 7-100 mm Near focus mode 3-7 mm | |

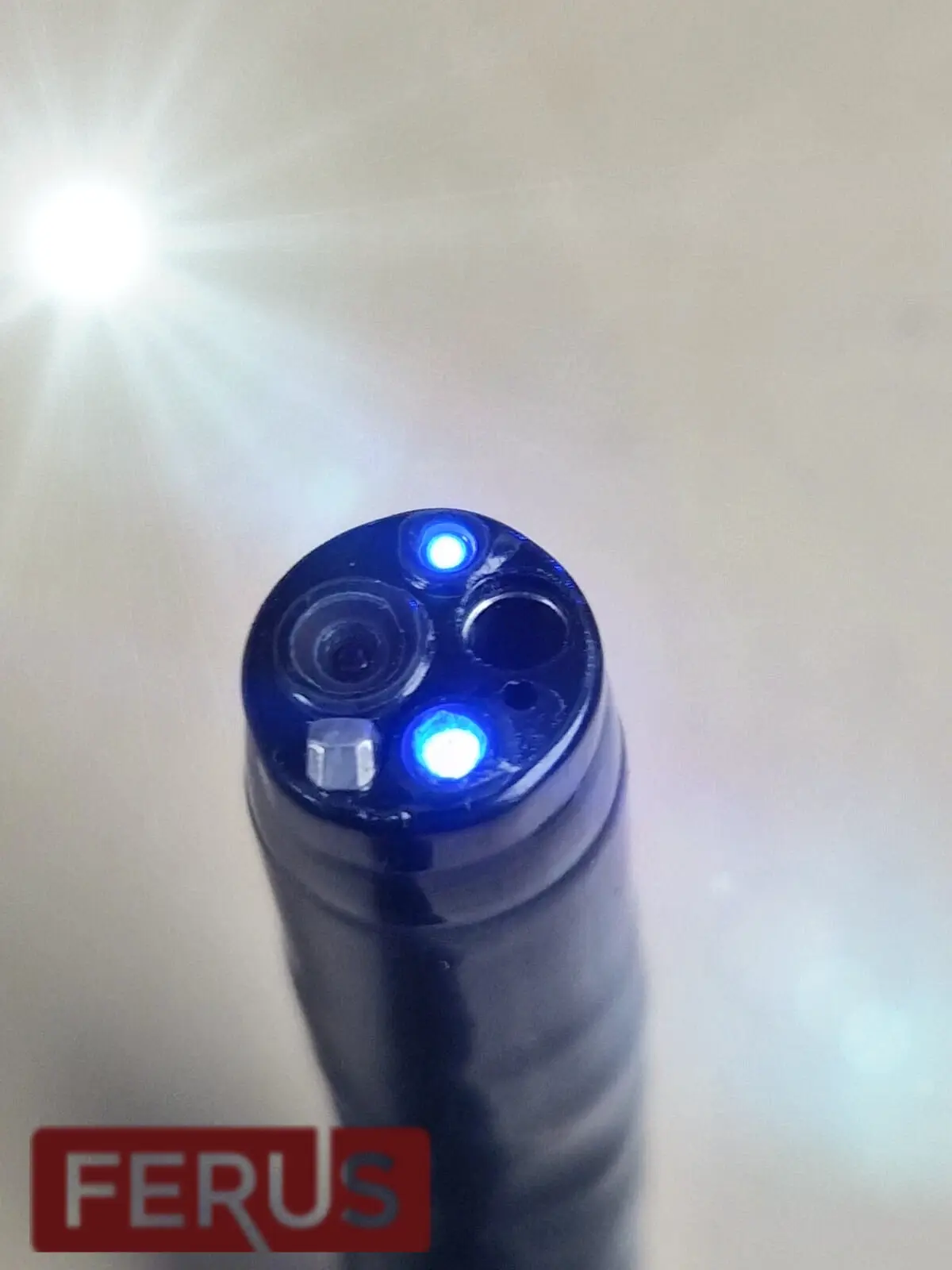

| Insertion Section | Distal End outer diameter | 10.2 mm |

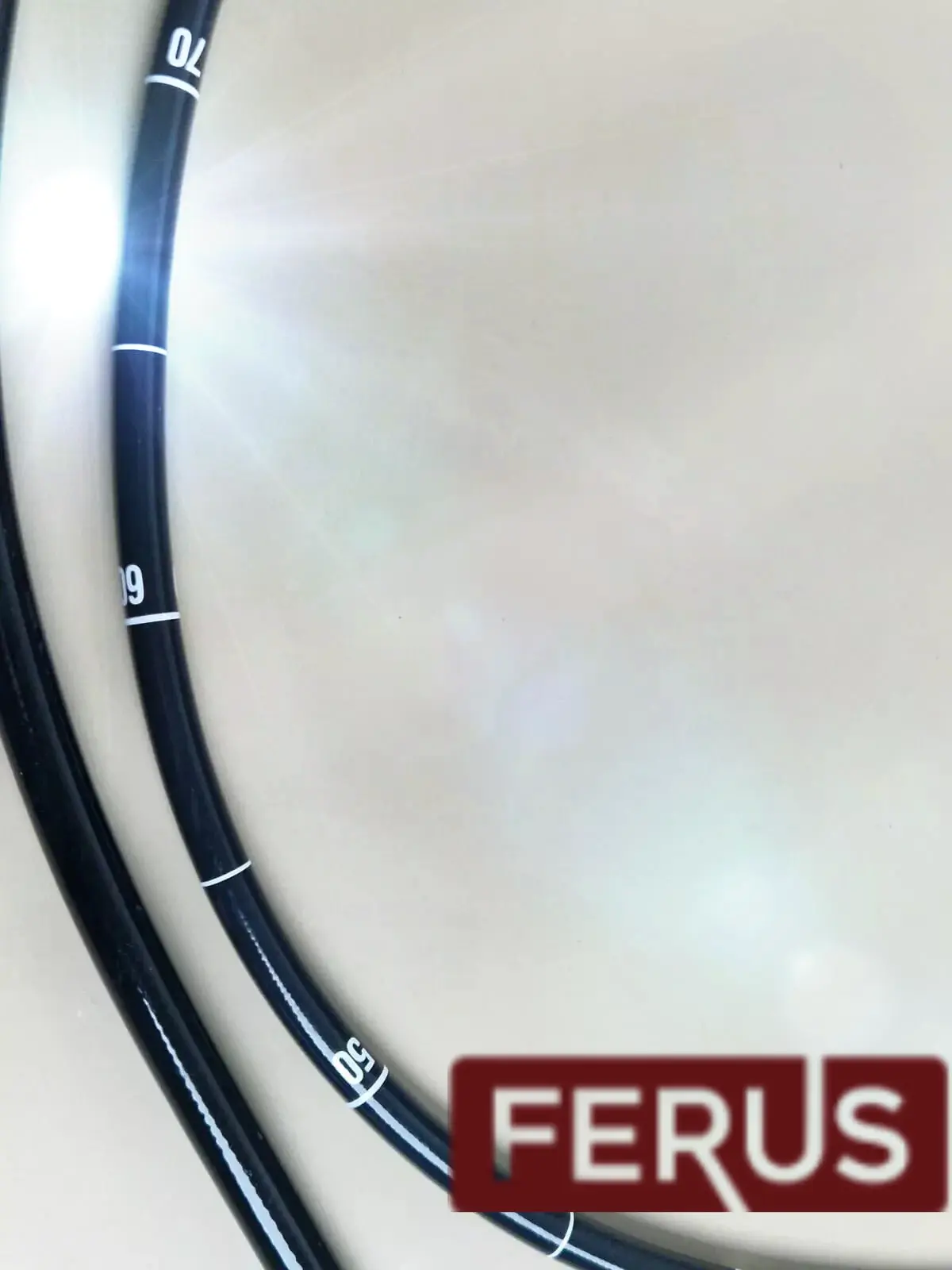

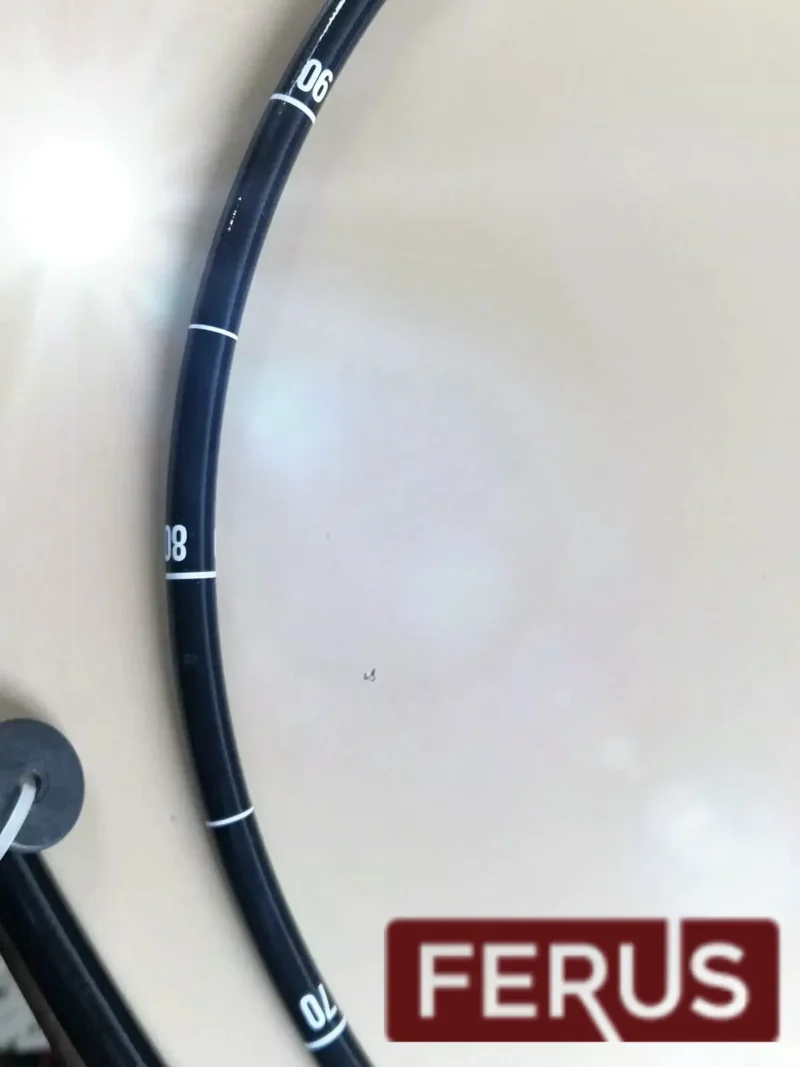

| Insertion Tube outer diameter | 9.9 mm | |

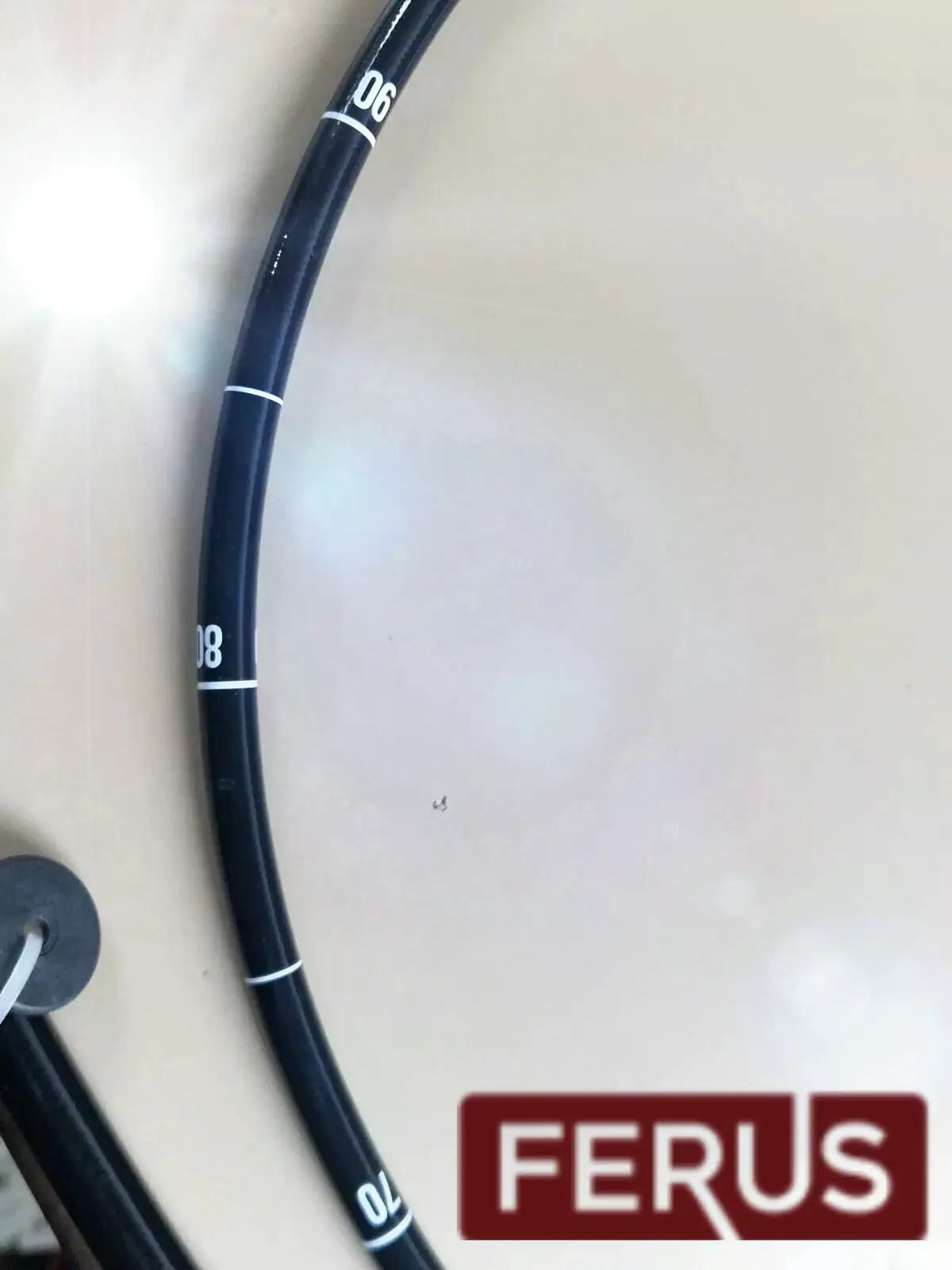

| Working Length | 1,030 mm | |

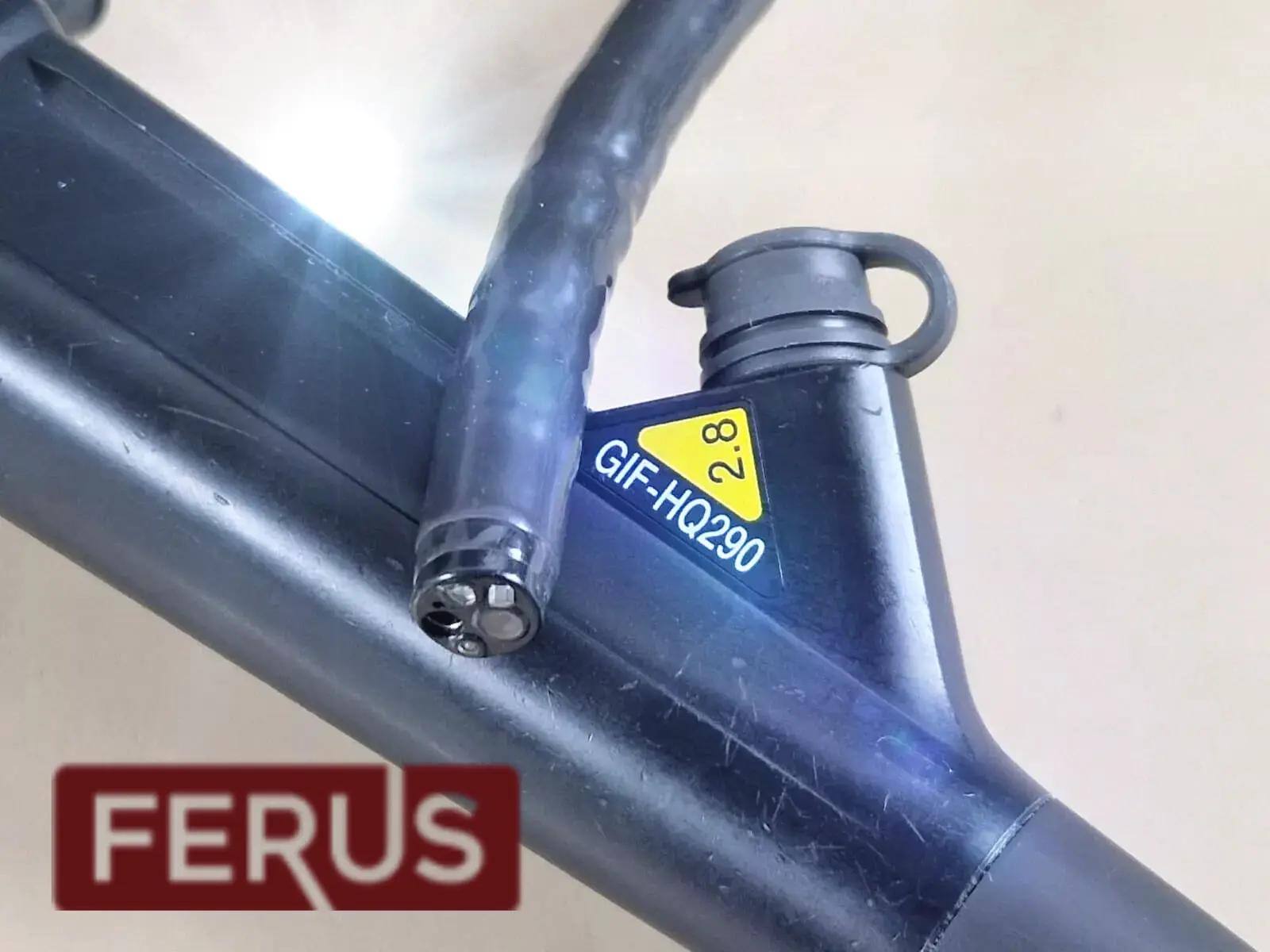

| Instrument Channel | Channel inner diameter | 2.8 mm |
| Minimum visible distance | 3.0 mm from the distal end | |

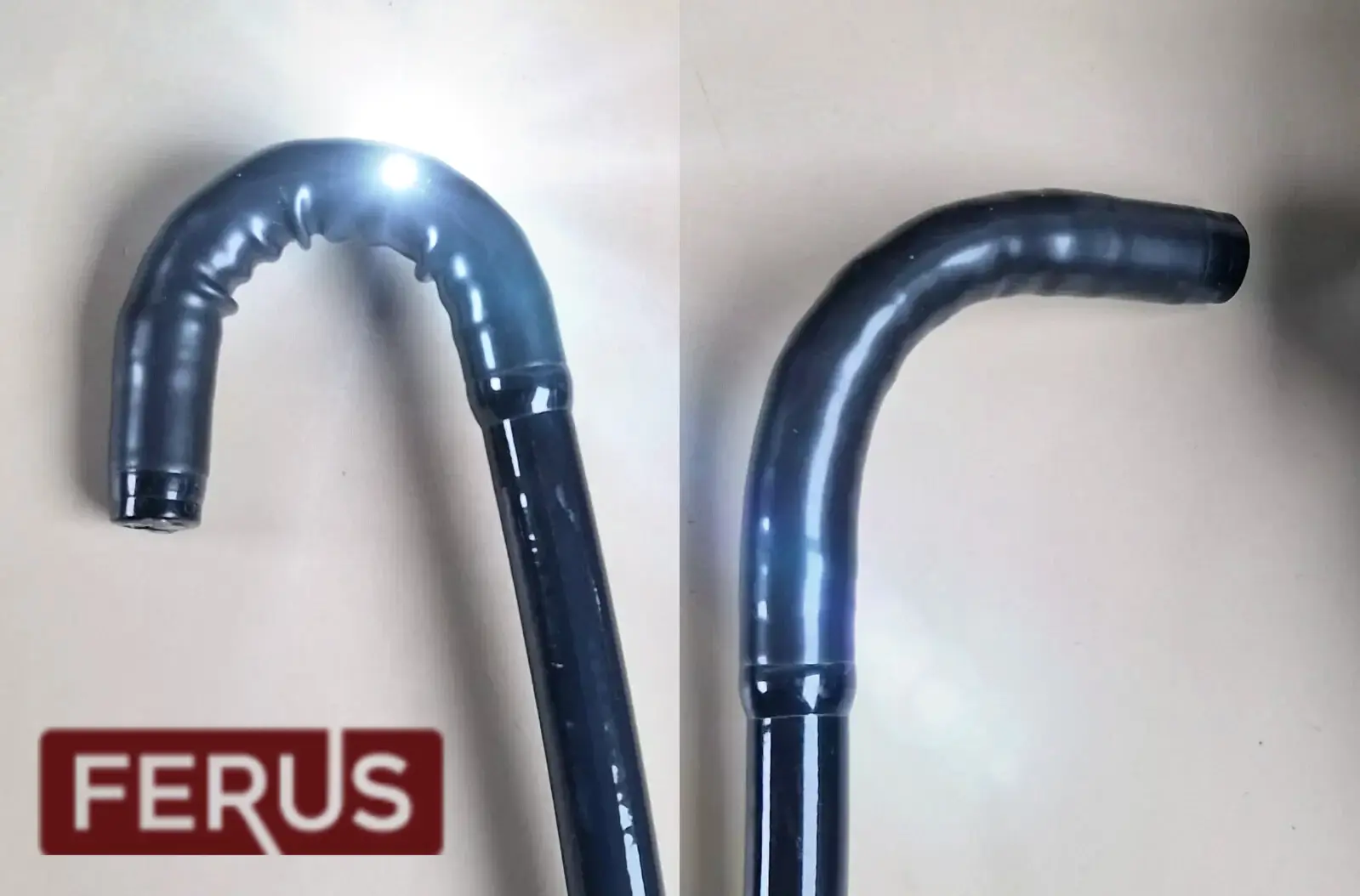

| Bending Section | Angulation range | Up 210° Down 90° Right 100° Left 100° |
| Total Length | 1,350 mm | |
| Compatible EVIS LUCERA System | Video System Center OLYMPUS CV-290 Xenon Light Source OLYMPUS CLV-290SL, CLV-290 |

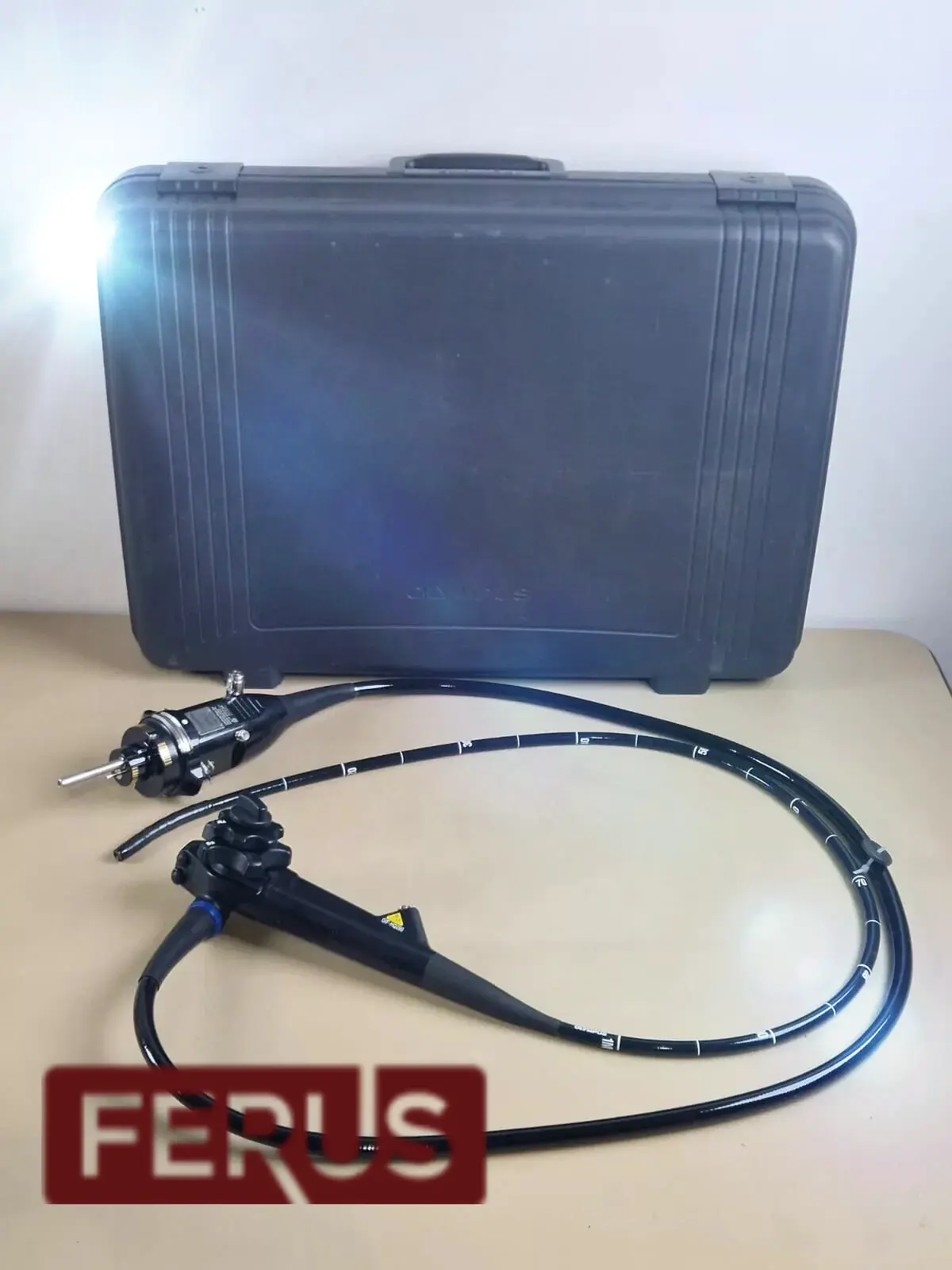

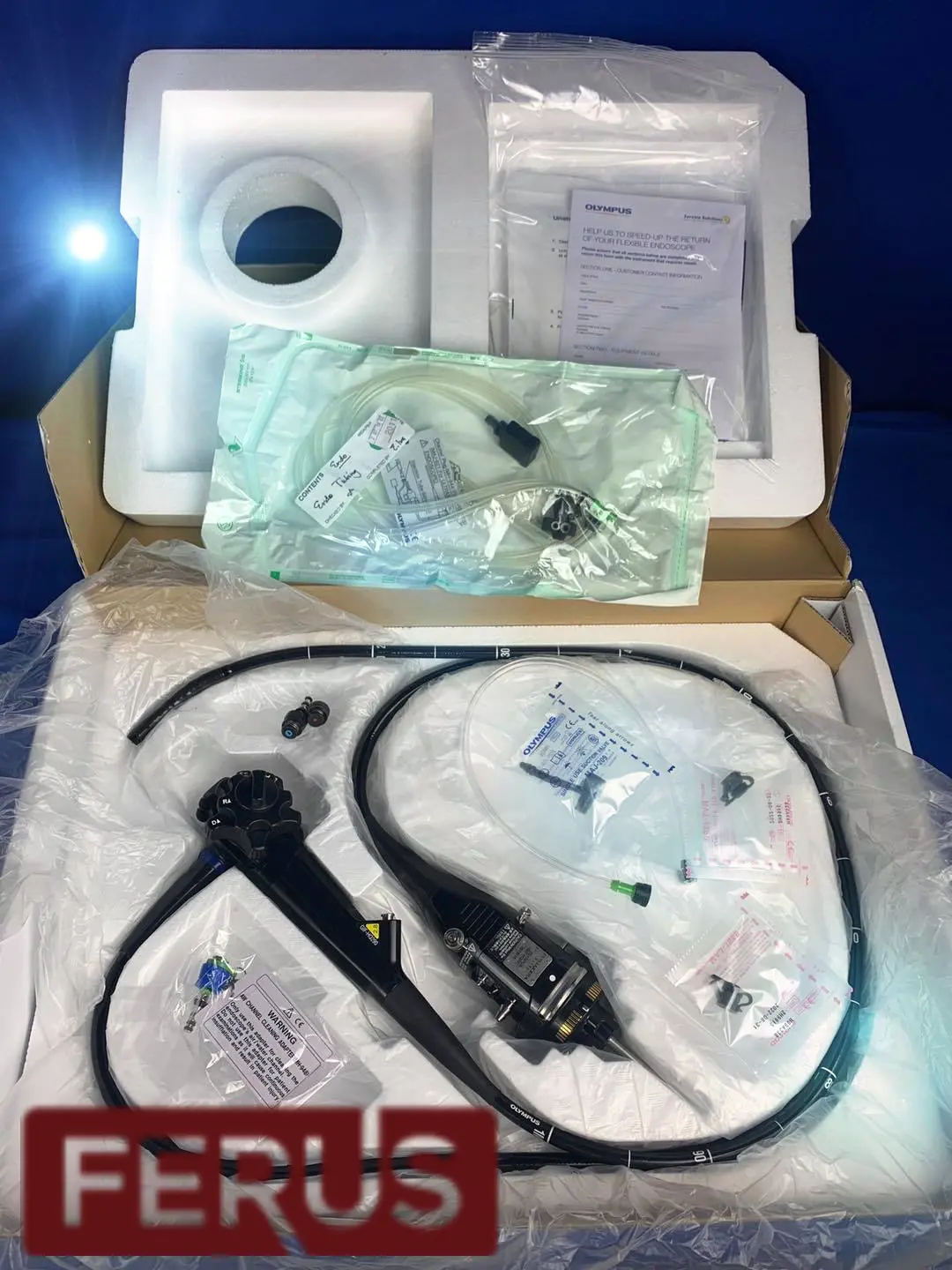

The package includes:

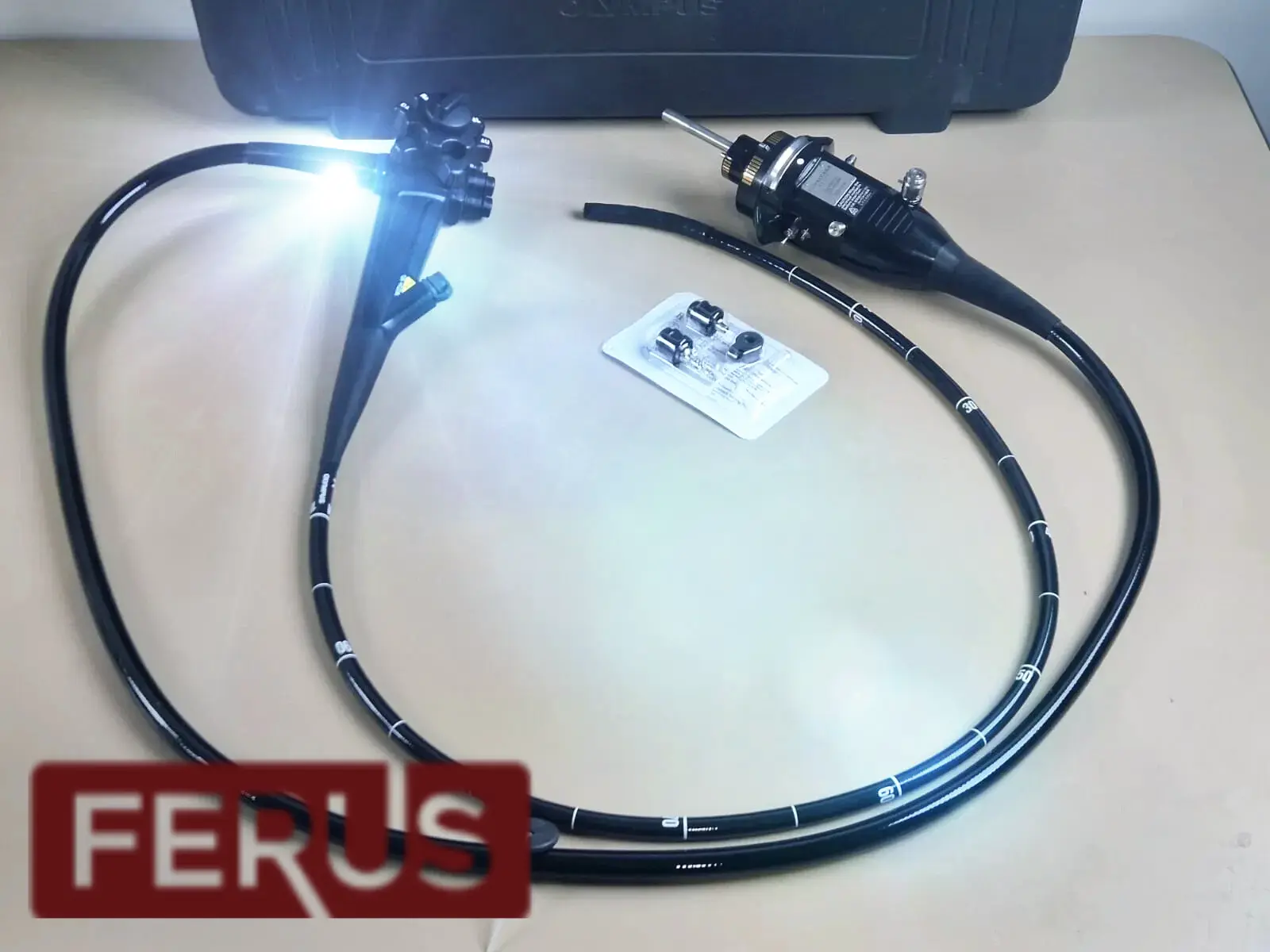

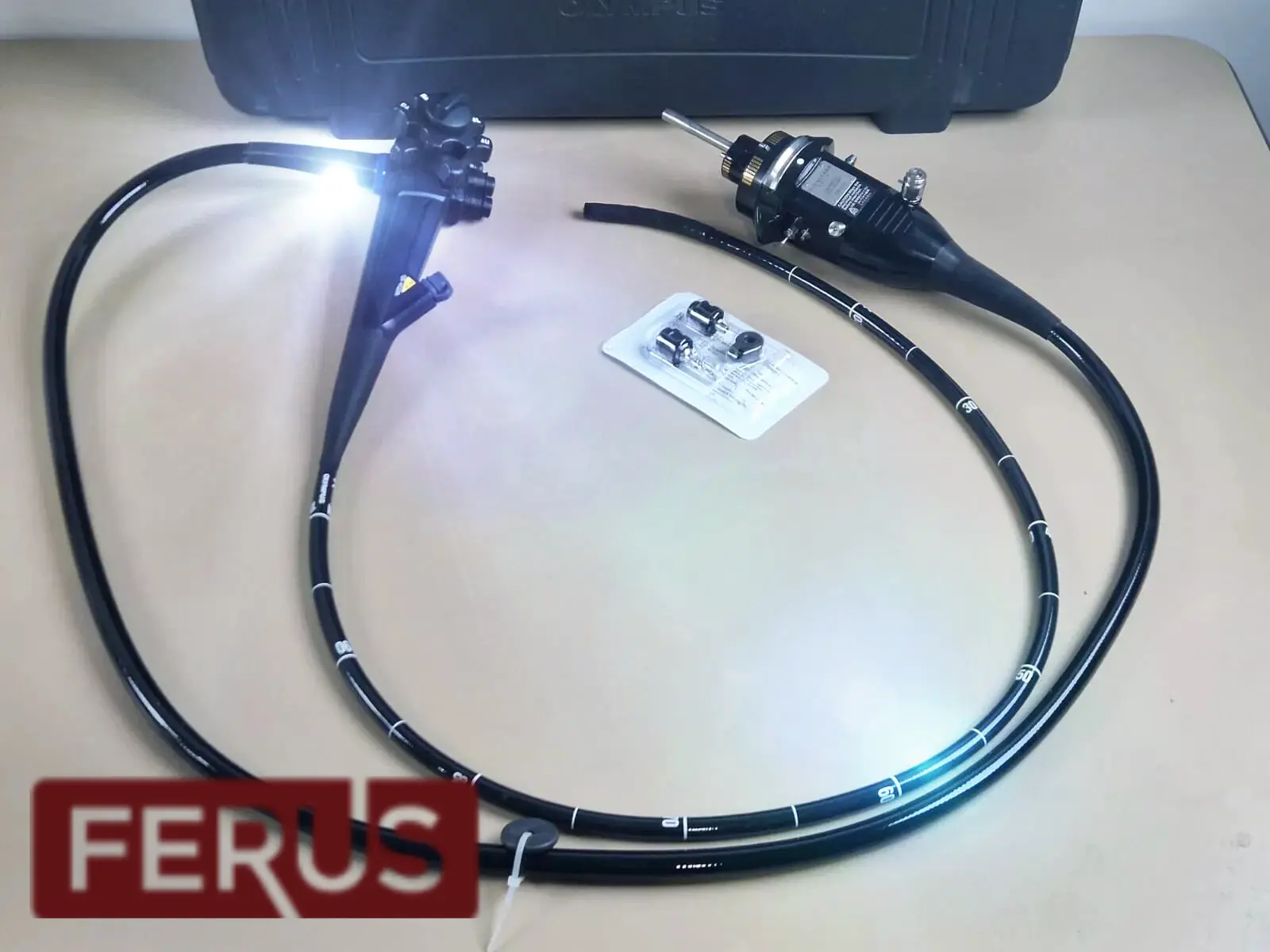

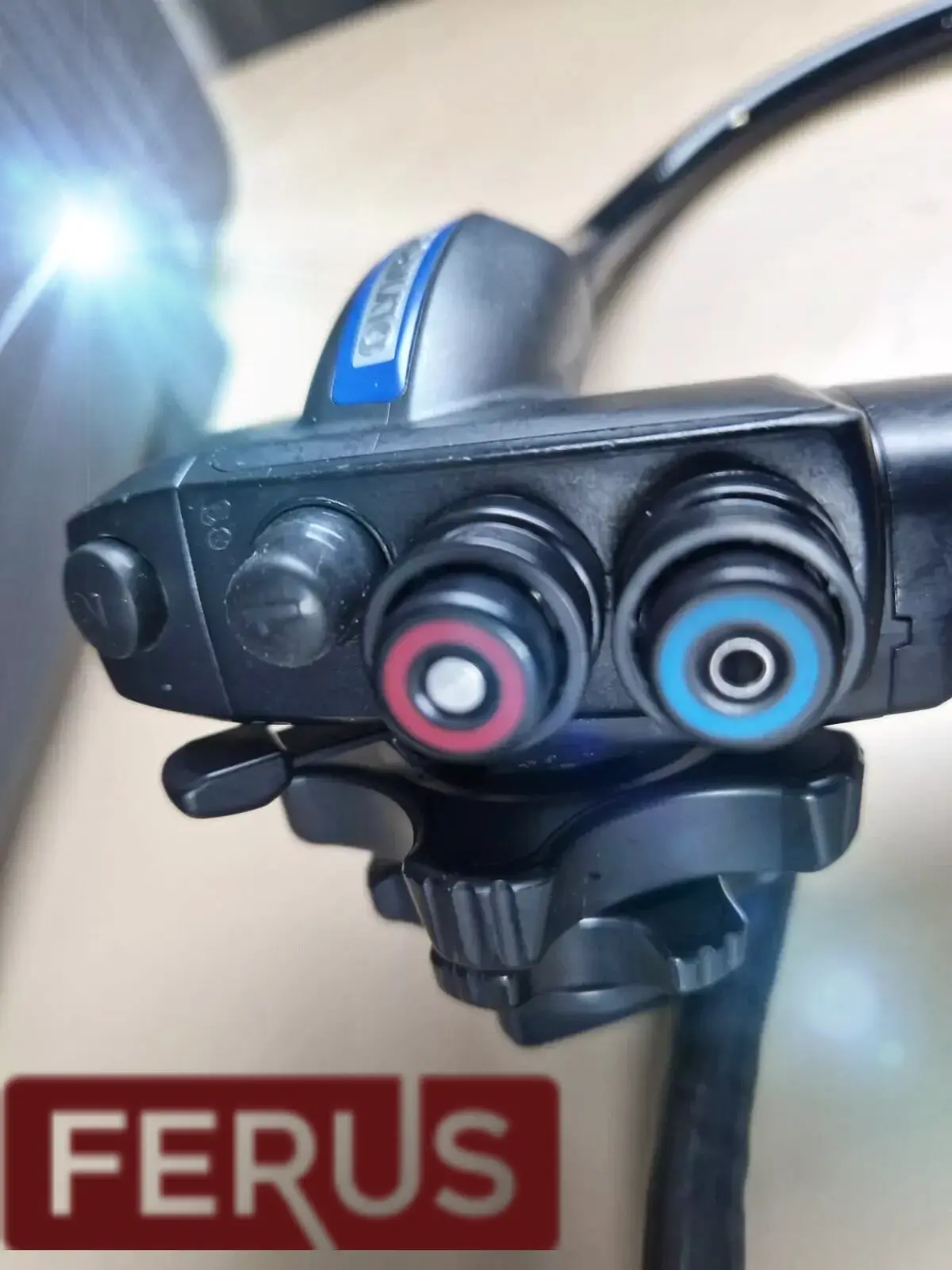

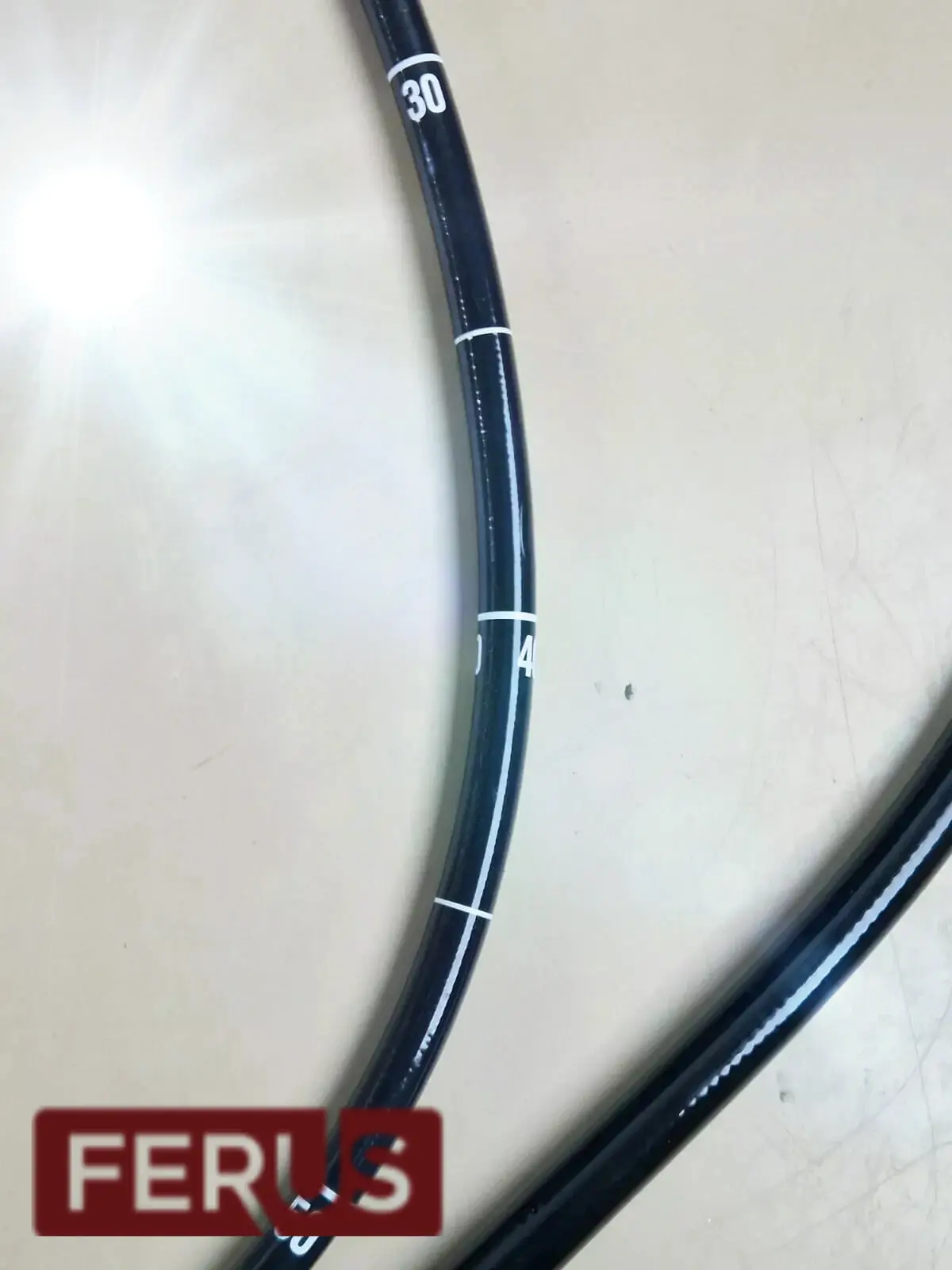

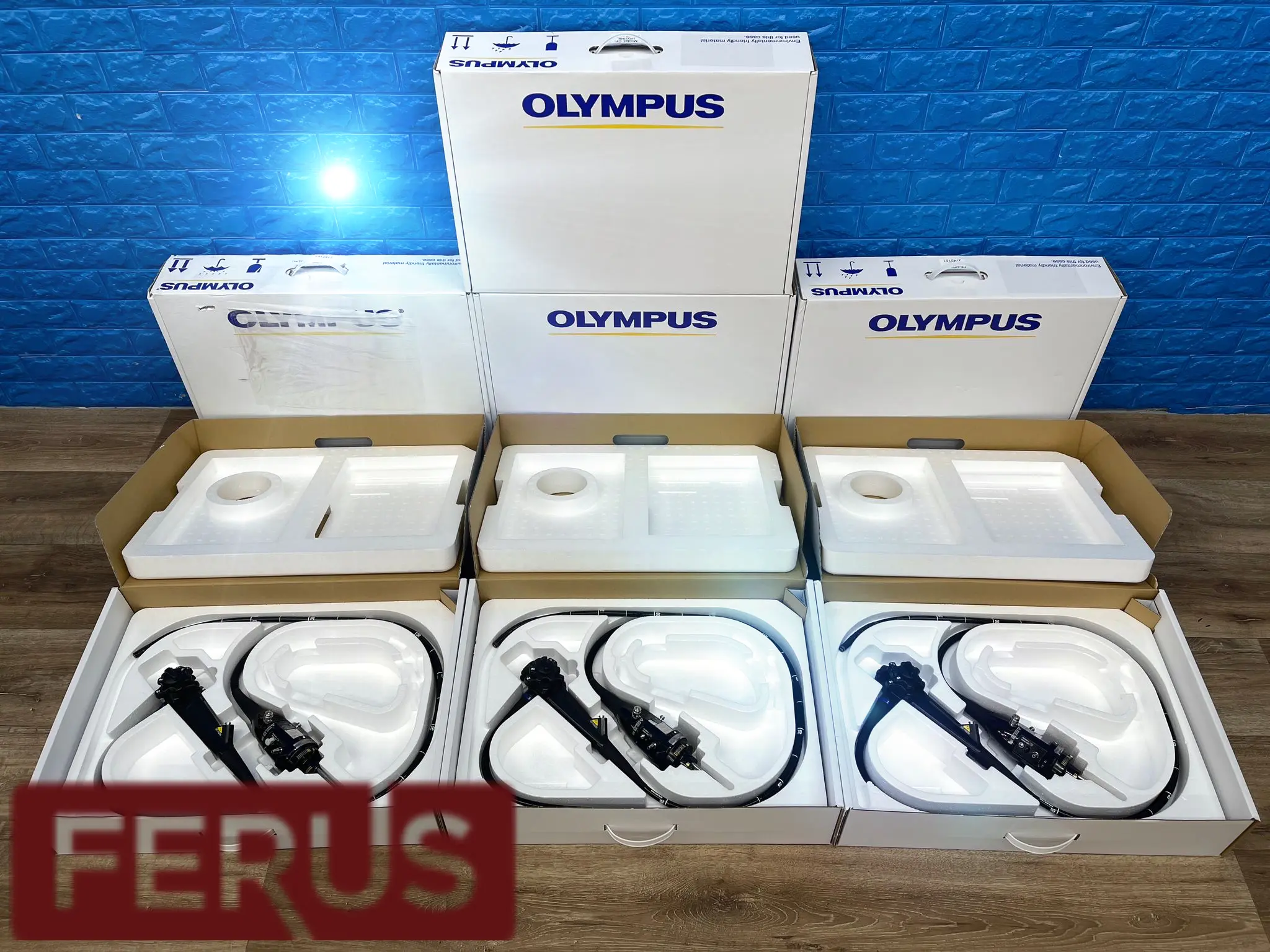

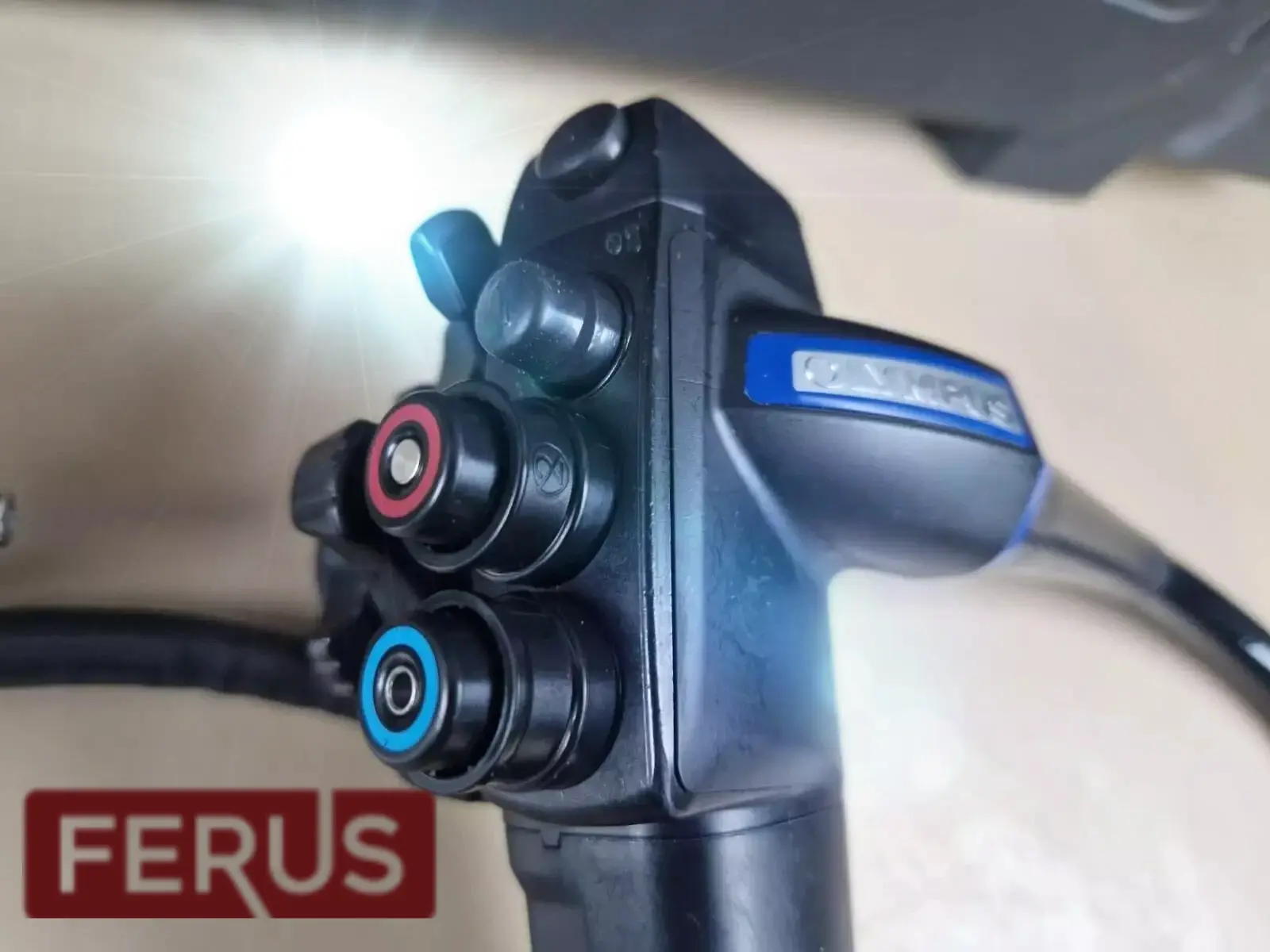

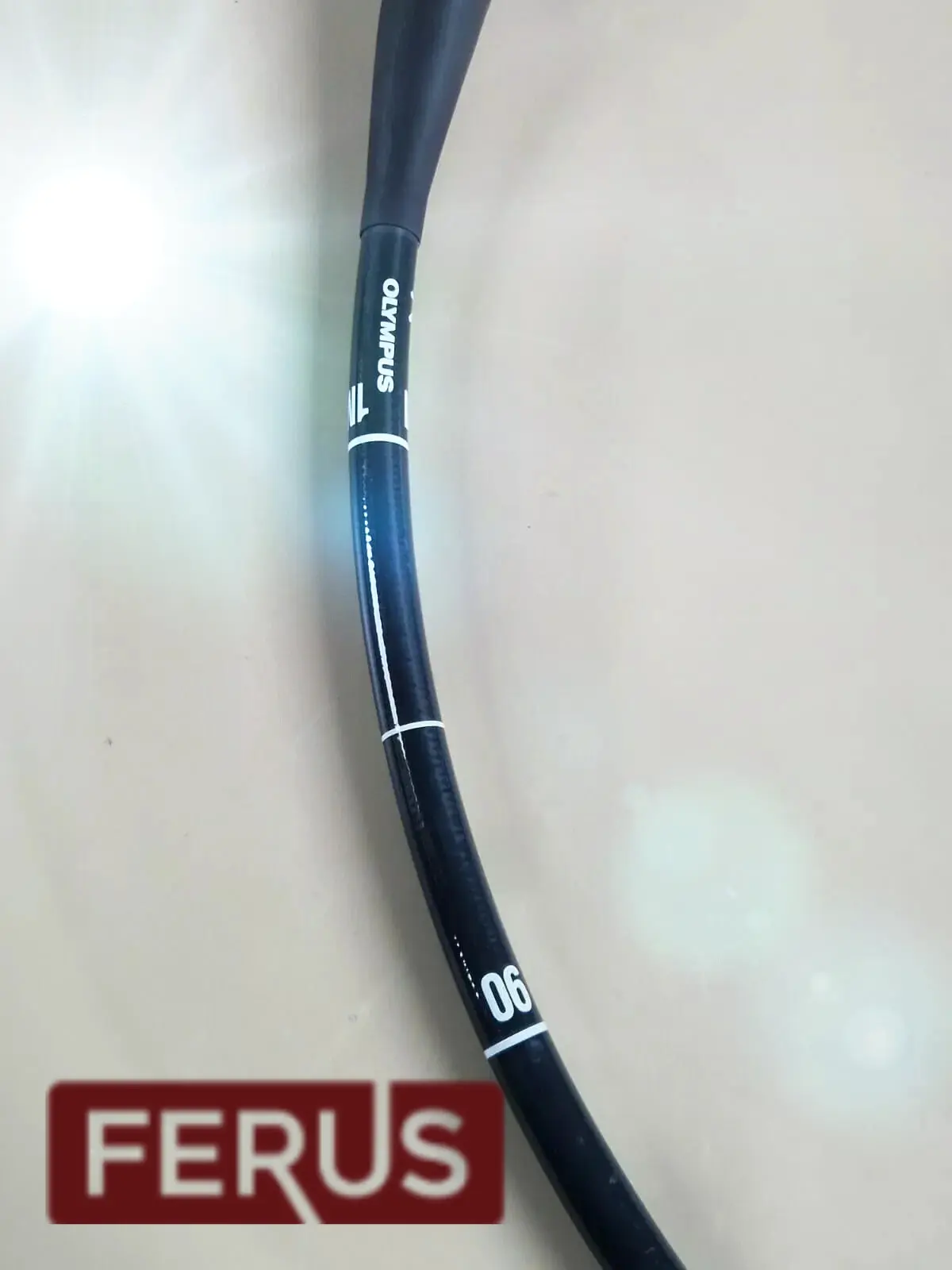

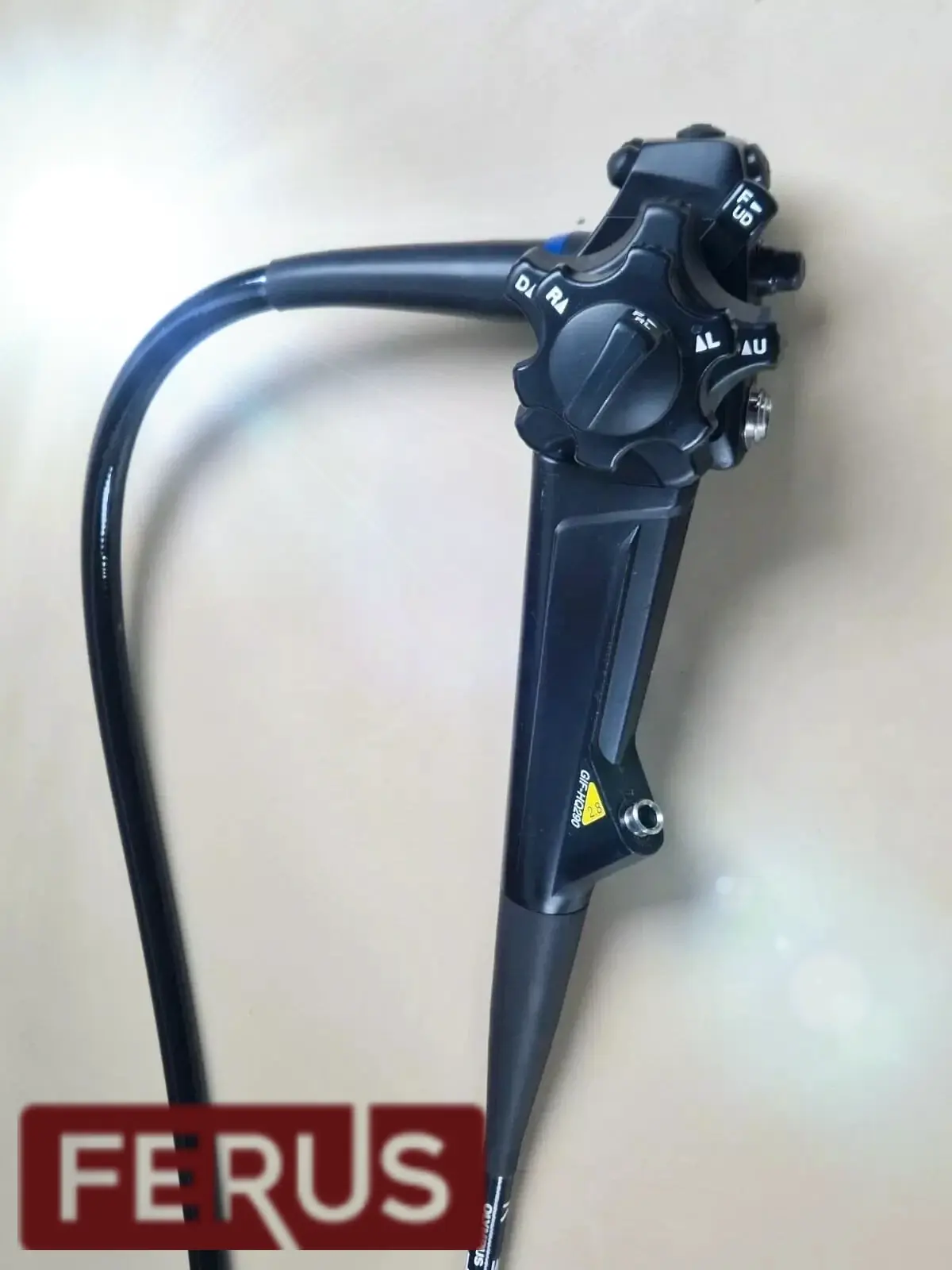

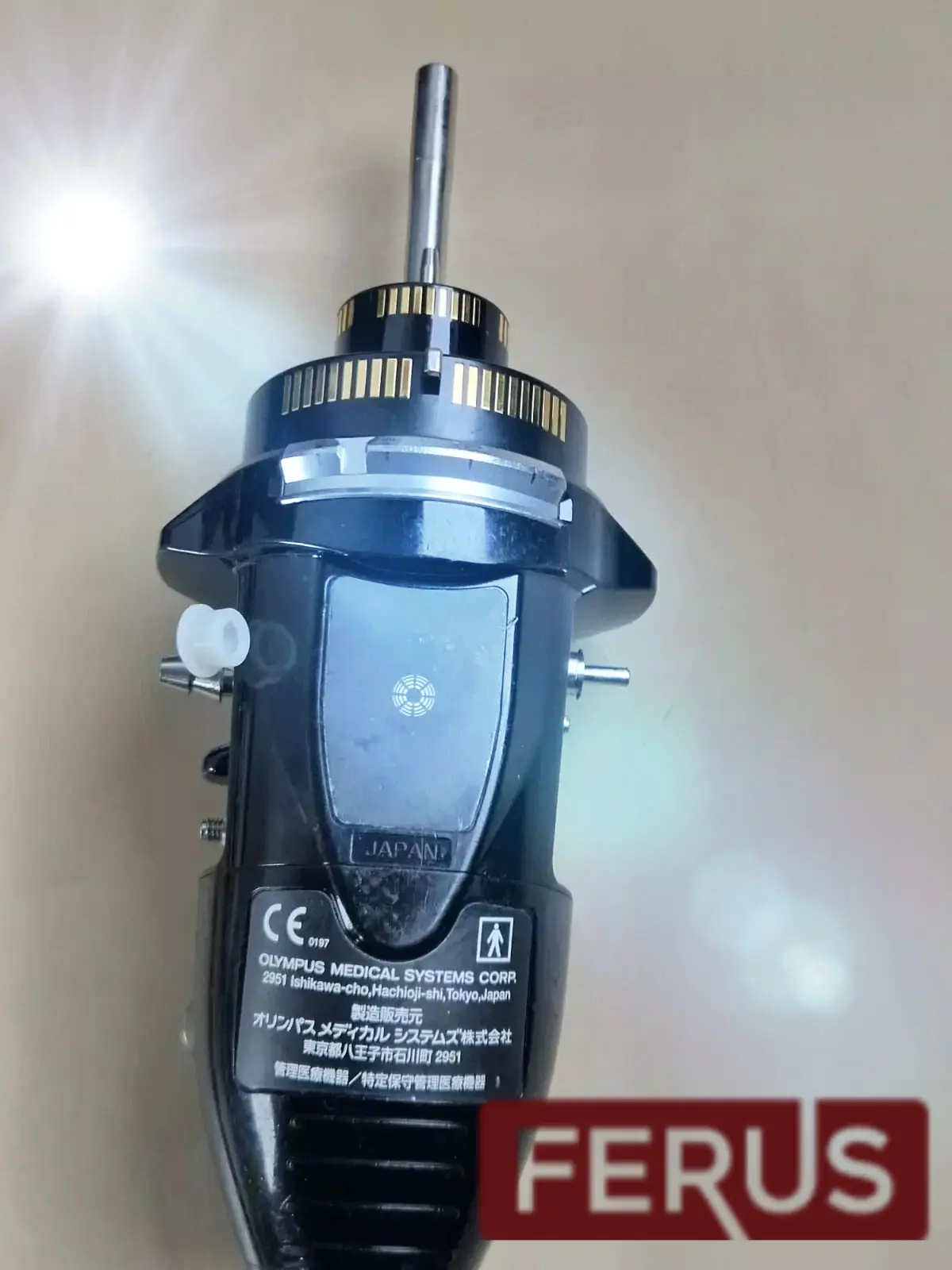

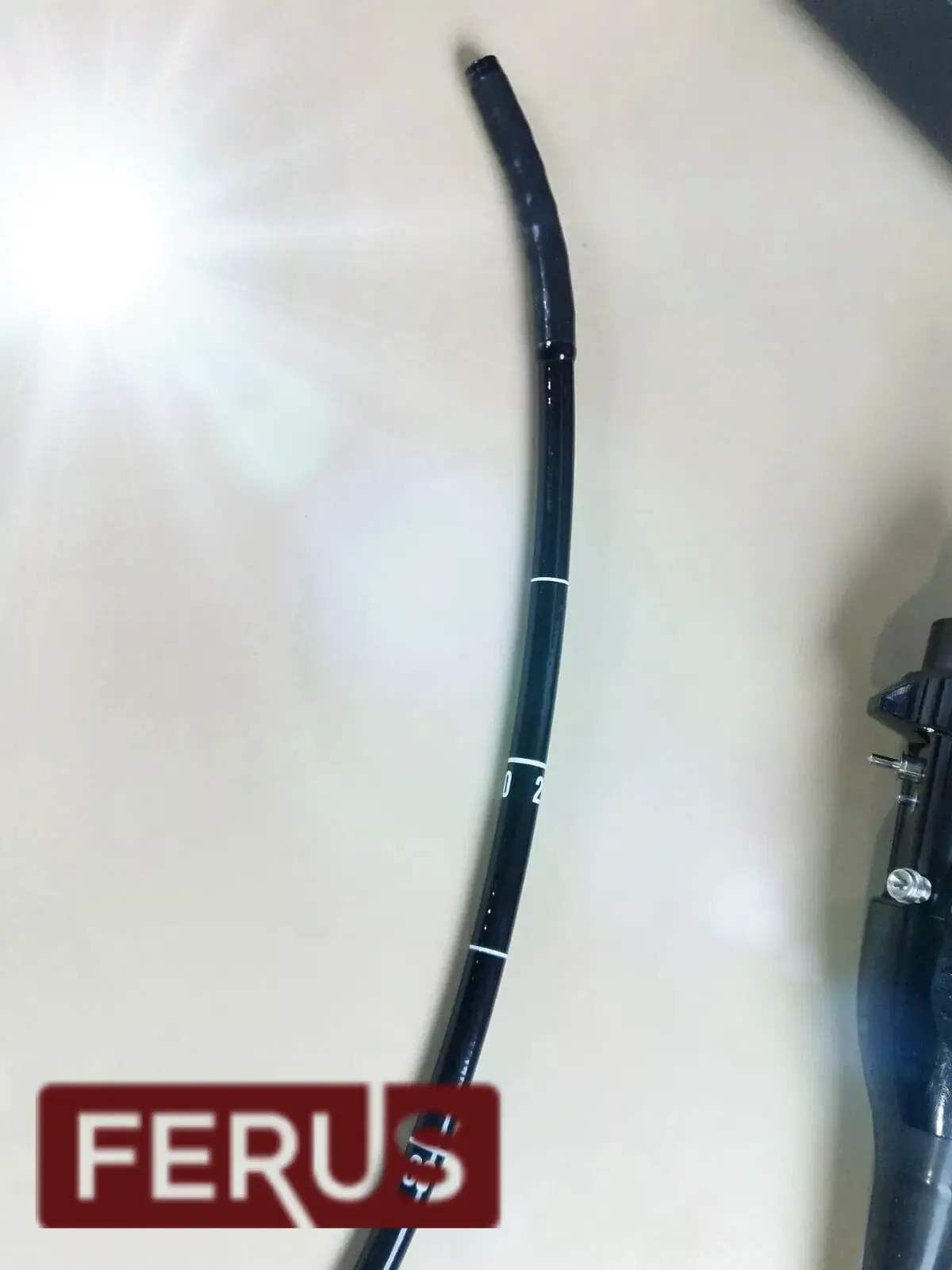

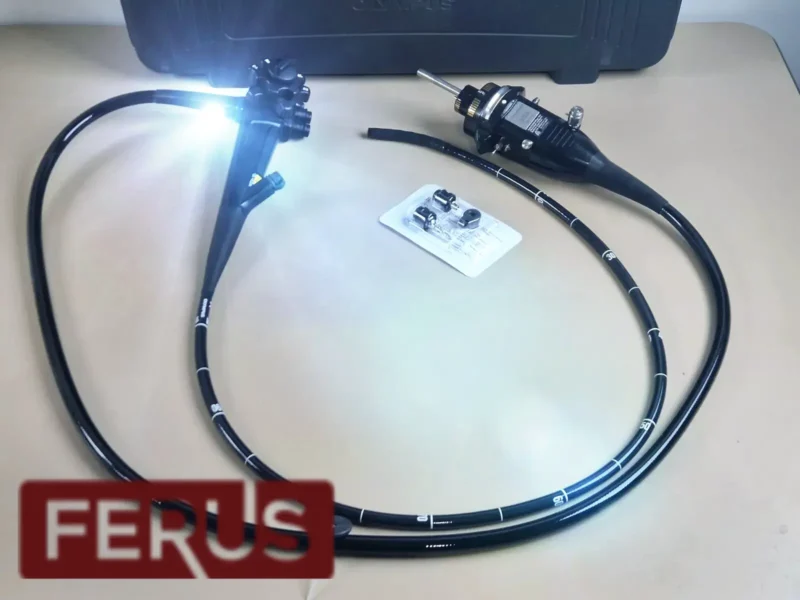

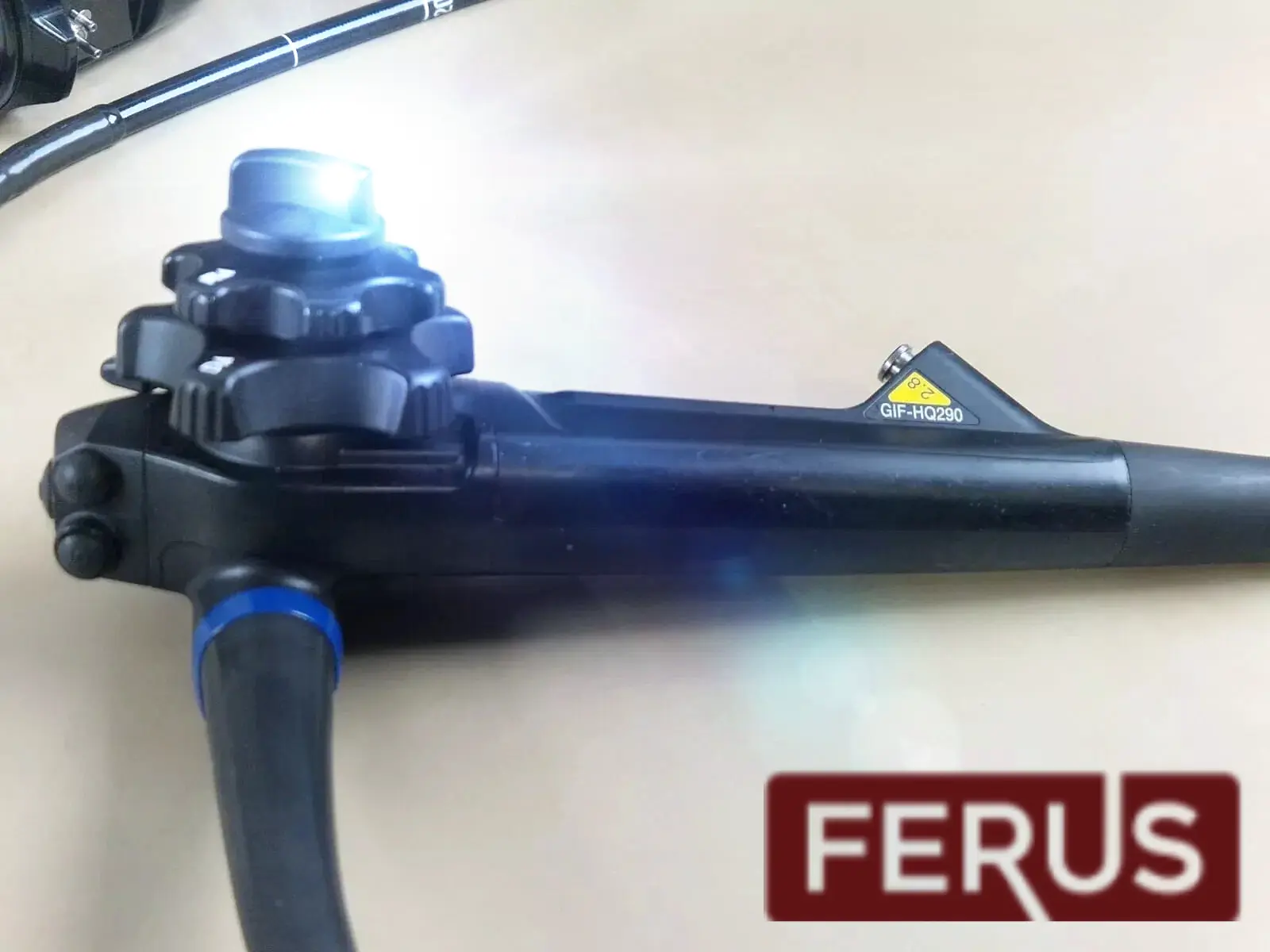

- 1- Olympus GIF-HQ290 evis lucera elite diagnostic videogastroscope with valve
