GE Logiq e Nextgen R7 Ultrasound System

Description

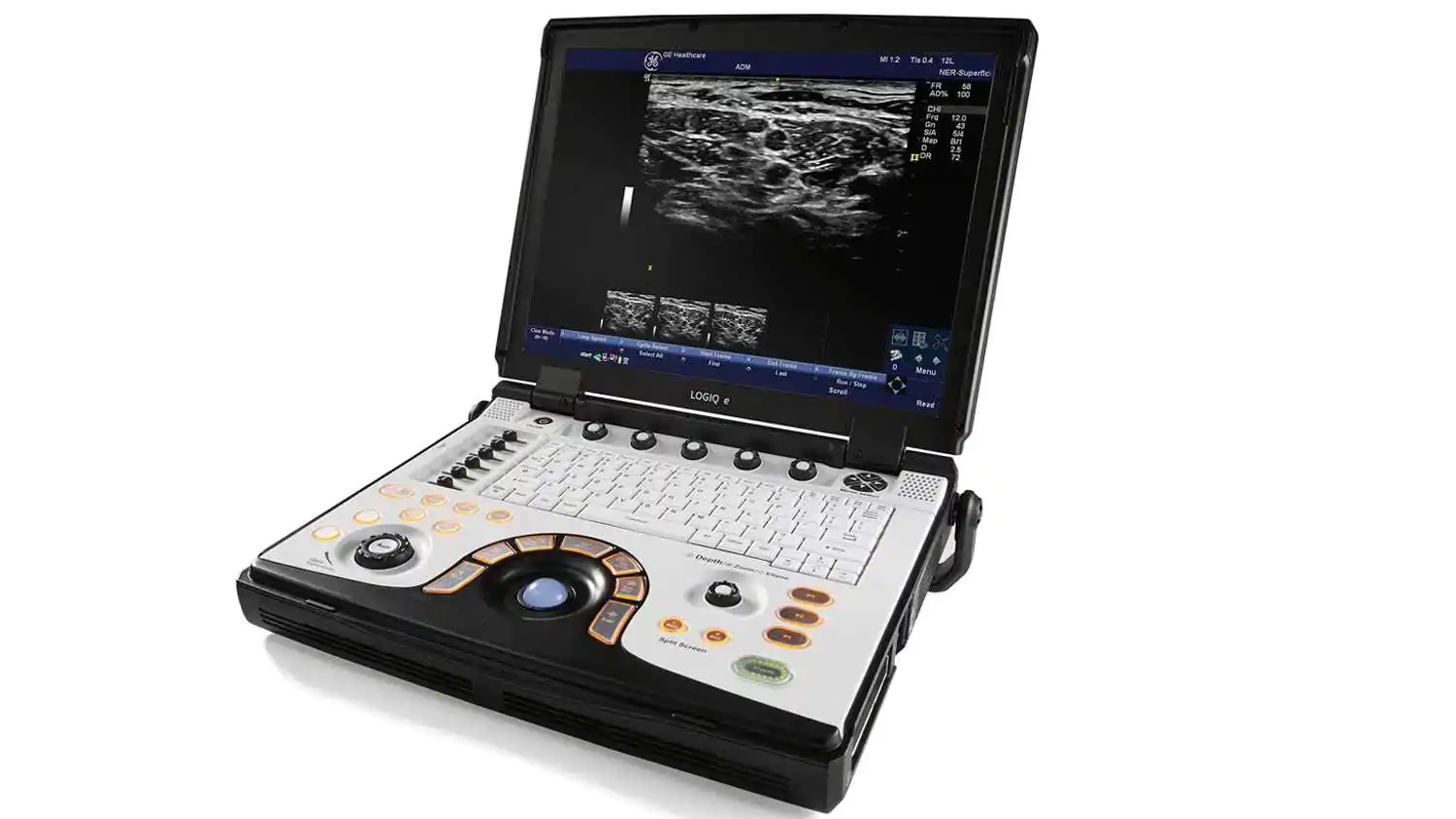

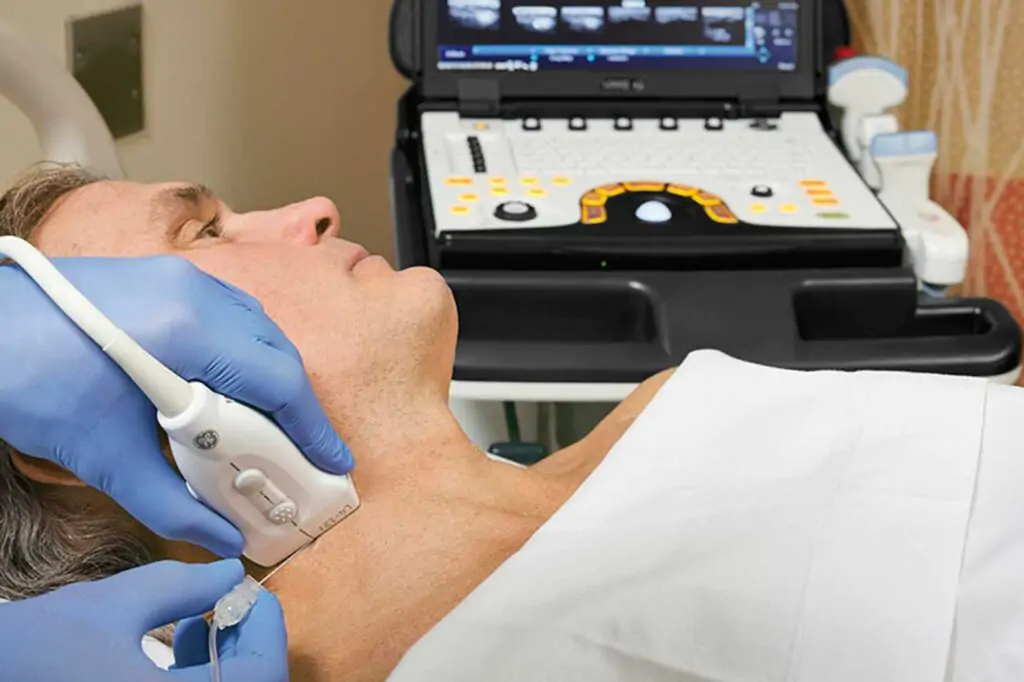

The GE LOGIQ e R7 is an advanced, high-end portable ultrasound machine with a laptop-style console design, making it high-performing and easy to transport. It’s engineered to provide high performance similar to a console system while maintaining the portability benefits of a laptop, allowing for practical use in various medical settings due to its compact size.

This device is versatile and can be applied to a broad spectrum of clinical applications, such as General Imaging, Musculoskeletal, Anesthesiology, Interventional, Emergency, Cardiology, Gastroenterology, OB-GYN, Urology, Vascular, and more, making it suitable for diverse medical scenarios. Additionally, it has been designed with features that ensure operator ease and contribute to improved patient care during examinations. Its capability and collapsible qualities make it ideal for use in environments with limited space, but the patient volume is high.

In terms of technology, the Logiq e R7 utilizes Crossbeam probe technology, which compounds information from multiple imaging angles in real time, enhancing ultrasound imaging capabilities for various clinical benefits. This technology supports numerous clinical applications, including regional anesthesia, cardiac, abdominal, obstetrics, urology, small parts, pediatrics, and rheumatology.

GE LOGIQ e R7 Features:

The NextGen LOGIQ combines the high performance of a console system with the portability of a laptop. GE HeHealthcare’s system is designed for general imaging, musculoskeletal, anesthesiology, interventional, emergency, and critical care applications.

Display Screen:

• 15 in High-Resolution Color LCD
• Resolution: 1024 x 768
• Horizontal/Vertical viewing angle: +/-80 degree
• Brightness AdjustmentIntegrated Speakers
• Audio Volume Adjustment
• Interactive Dynamic Software Menu

Console Design:

• Laptop Style
• Lithium Ion Battery
• Integrated Solid State Drive
• CPU – Intel Duo Core
• Operating System – Microsoft® Windows® 7

Console Interfaces:

• DC Power Input
• USB 2.0 (3)
• LAN 10/100/1000 BaseT
• Docking Cart Connector
• HDMI

Standard Features:

• Integrated Solid State Drive
• Automatic Optimization
• CrossXBeamTM
• Speckle Reduction Imaging (SRI-HD)
• Virtual Convex/Virtual Apex
• Fine Angle Steer
• HD Zoom (Write Zoom)
• Coded Harmonic Imaging (CHI)
• Raw Data Processing
• Quicksave
• On-board User Manual (Help)
• InSiteTM ExC capability
• Loop storage—from live scanning and memory
• Patient Information Database
• Customizable User Interface
• Full M&A Calculation Package with real-time Auto Doppler Calculations
• Vascular Calcs
• Cardiac Calcs
• OB Calcs and Tables
• Fetal Trending
• Multi Gestational Calcs
• Musculoskeletal and Hip Dysplasia Calcs
• Gynecological Calcs
• Urological Calcs
• Renal Calcs
• Small Parts Calcs
• Rheumatology Calcs
• Pediatric Calcs
• Report Writer Package

 Software Options:

• easy3D
• LOGIQ View
• Needle Recognition
• Stress Echo
• eSmart Trainer
• Auto IMT
• DICOM® 3.0 Connectivity/Encrypted DICOM

LOGIQ e Needle Recognition Software Option helps provide a precise and accurate display of the needle, anatomy, and motion, even in Color and Power Doppler. This feature harnesses pattern recognition technology that recognizes and accurately reveals the structure of a needle within the anatomy without distorting the needle and compromising the target.

It also includes the ability to adjust needle gain and angle.

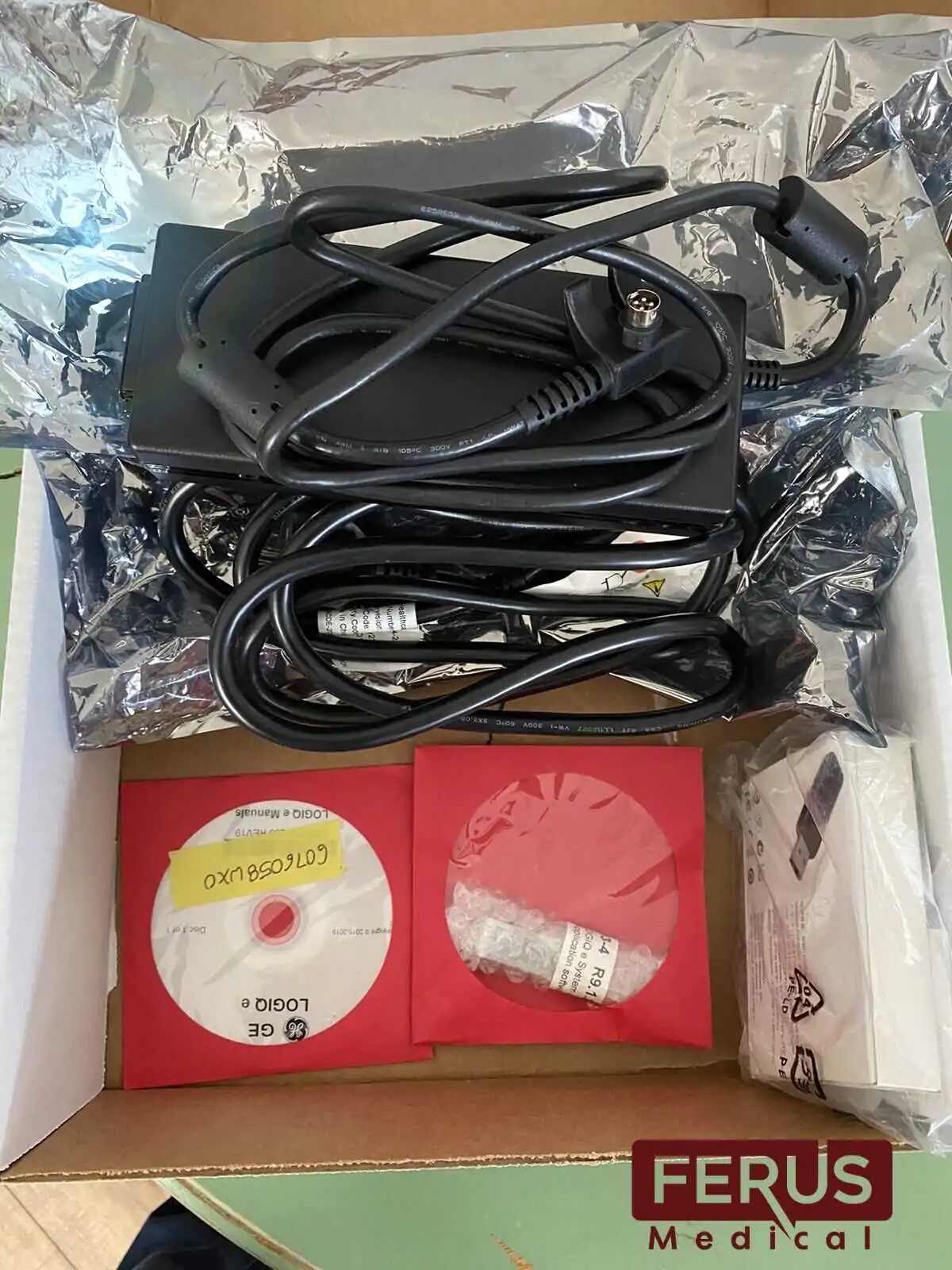

• Standard package includes AC power cord (USA)
• internet cord 3 meters in length CAT-5 type
• PC to HUB structure
• system software on USB
• Optional Function Key Label
• Ultrasound Transmission Gel .25L
• English Basic Service Manual CD English User Guide and AIUM booklet.

The following scanning modes are included:

• B-mode
• M-mode
• Anatomical M-mode
• Color flow mode
• Power Doppler imaging
• Pulsed wave Doppler and Ophthalmic

The GE Logiq e is one of the most popular portable ultrasound systems covering various applications. Since launched in 2006, The GE Logiq e has been upgraded yearly with different BT(Break Through) versions. It has added multiple features and probes to strengthen its usability, especially in the Point of Care application.

The Logiq e R7 has an outfit like the Logiq e BT12. Still, the internal H/W and S/W have been fully upgraded so that its image quality, system response time, features, and probes are one or two levels higher than that of the Logiq e BT12; however, its price point becomes generally $10,000 more elevated with the same option and probe configuration.

Specifications:

Console Dimensions Height

• 70 mm (2.75 in) console only
• 100 mm (3.94 in) with handle

Width

• 295 mm (11.61 in) console only
• 343 mm (13.50 in) with a handle

Length

• 346 mm (13.62 in) console only
• 375mm (14.76 in) with a handle

Weight with Battery: Approximately 5.2 Kg (11.5 lbs)

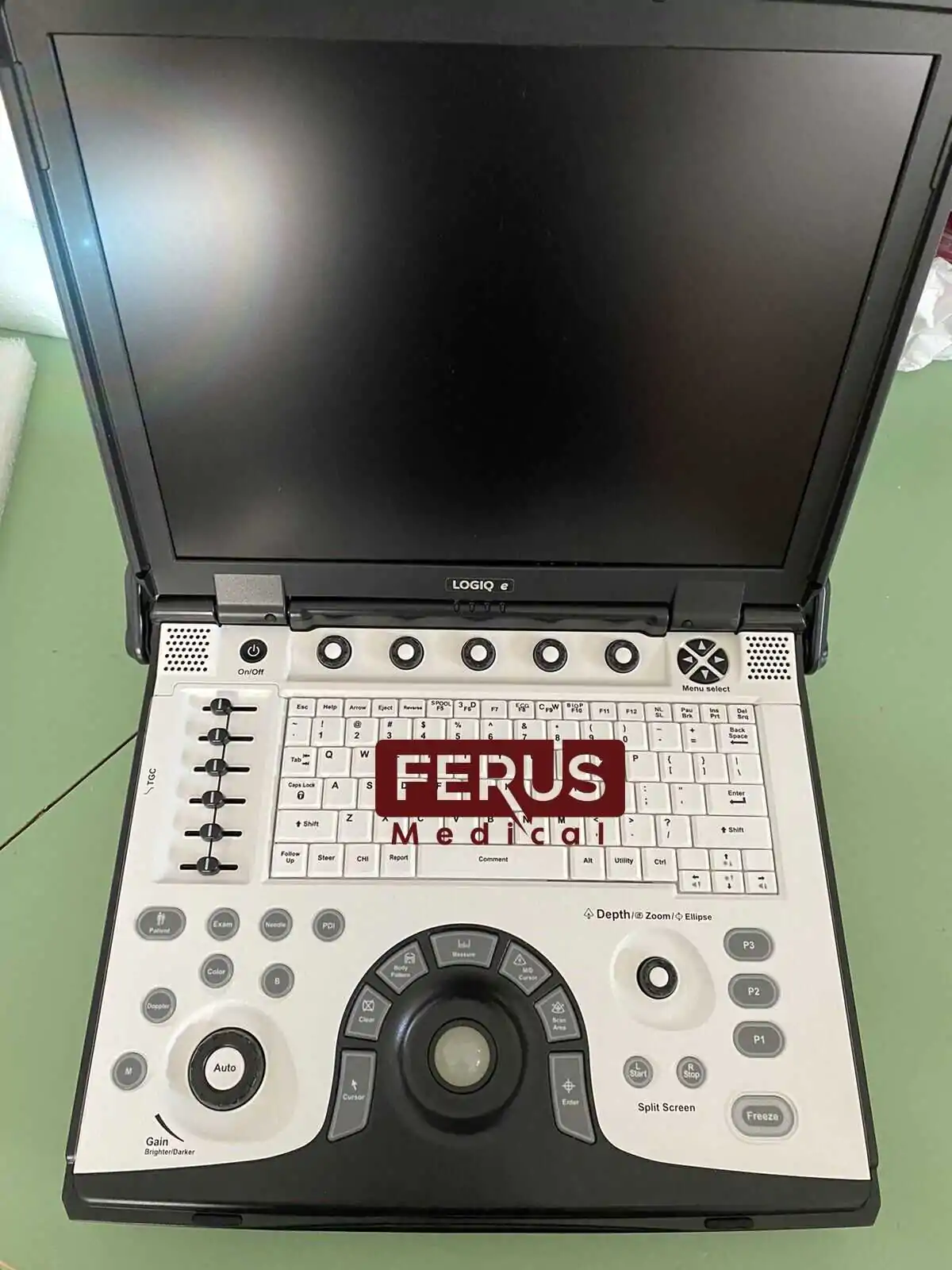

Operator Keyboard

• Alphanumeric Keyboard
• Ergonomic Hard Keys
• Backlight Keys

Display Screen

• 15 in High-Resolution Color LCD
• Resolution: 1024 x 768
• Horizontal/Vertical viewing angle: +/-80 degree
• Brightness Adjustment
• Integrated Speakers
• Audio Volume Adjustment
• Interactive Dynamic Software Menu

Console Electrical Power

• Voltage: 100-240 V AC
• Frequency: 50/60 Hz
• Power: Max. 130 VA

Include:

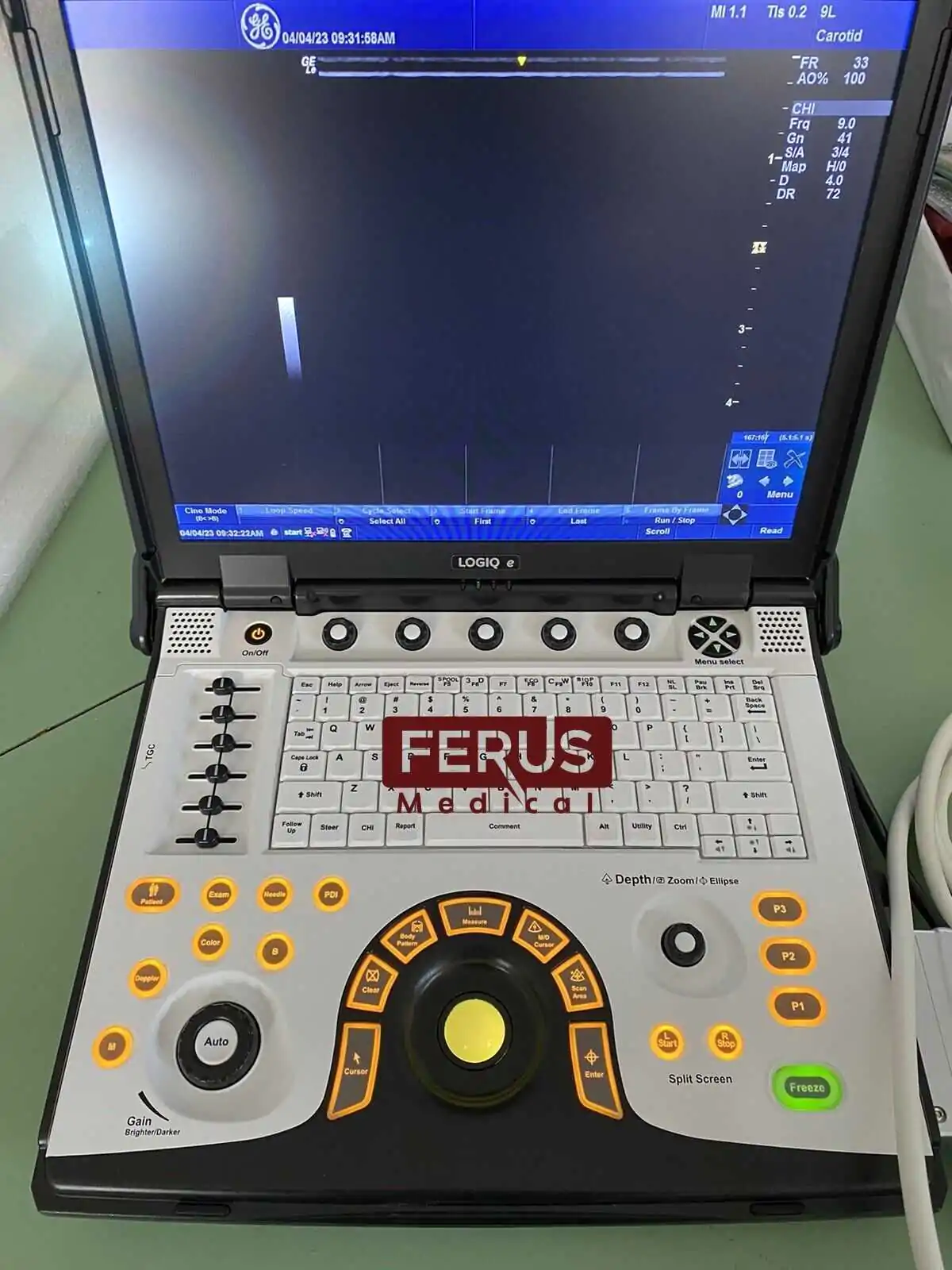

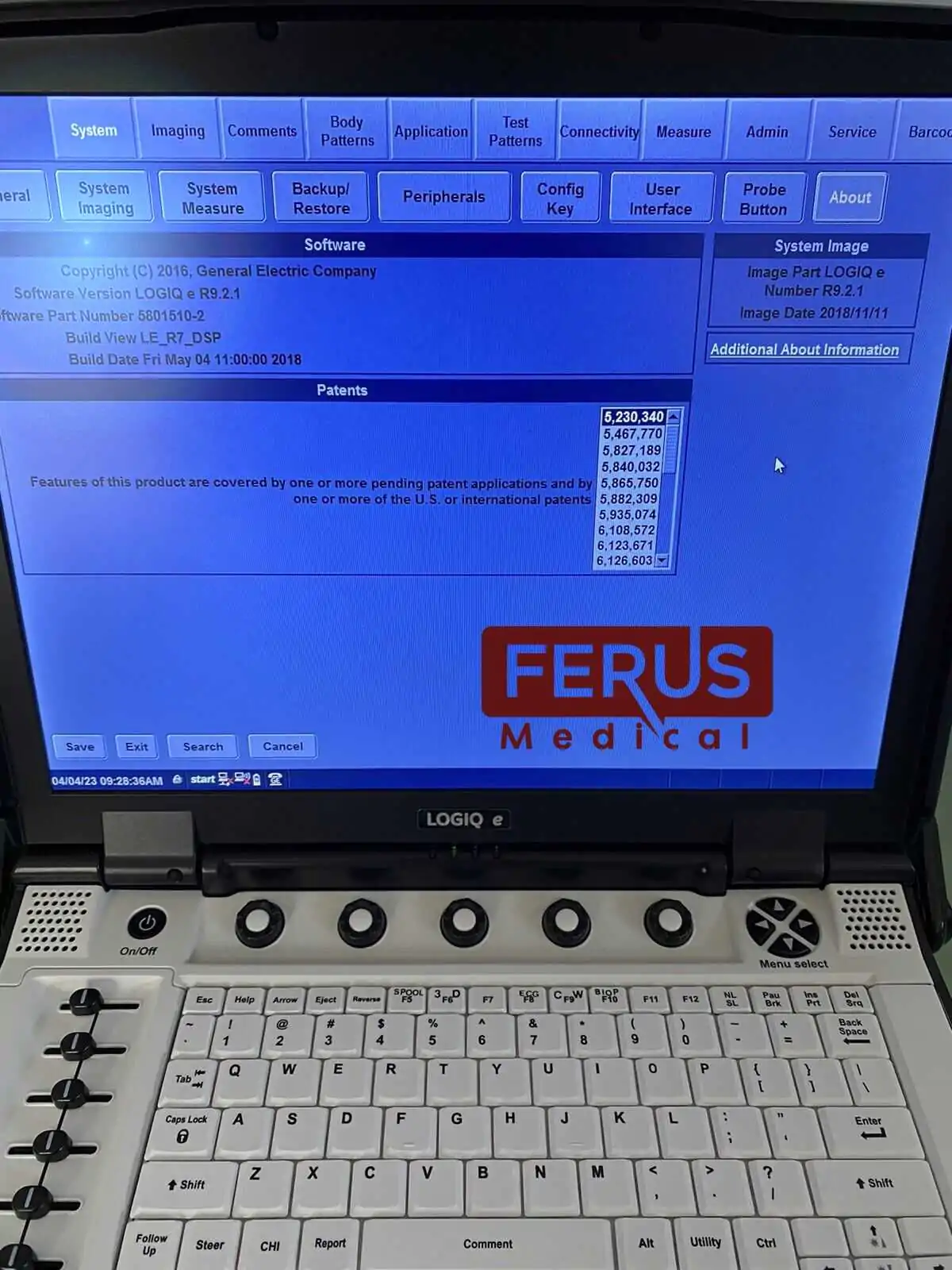

• GE Logiq e Next Gen R7 version R9.2.1GE

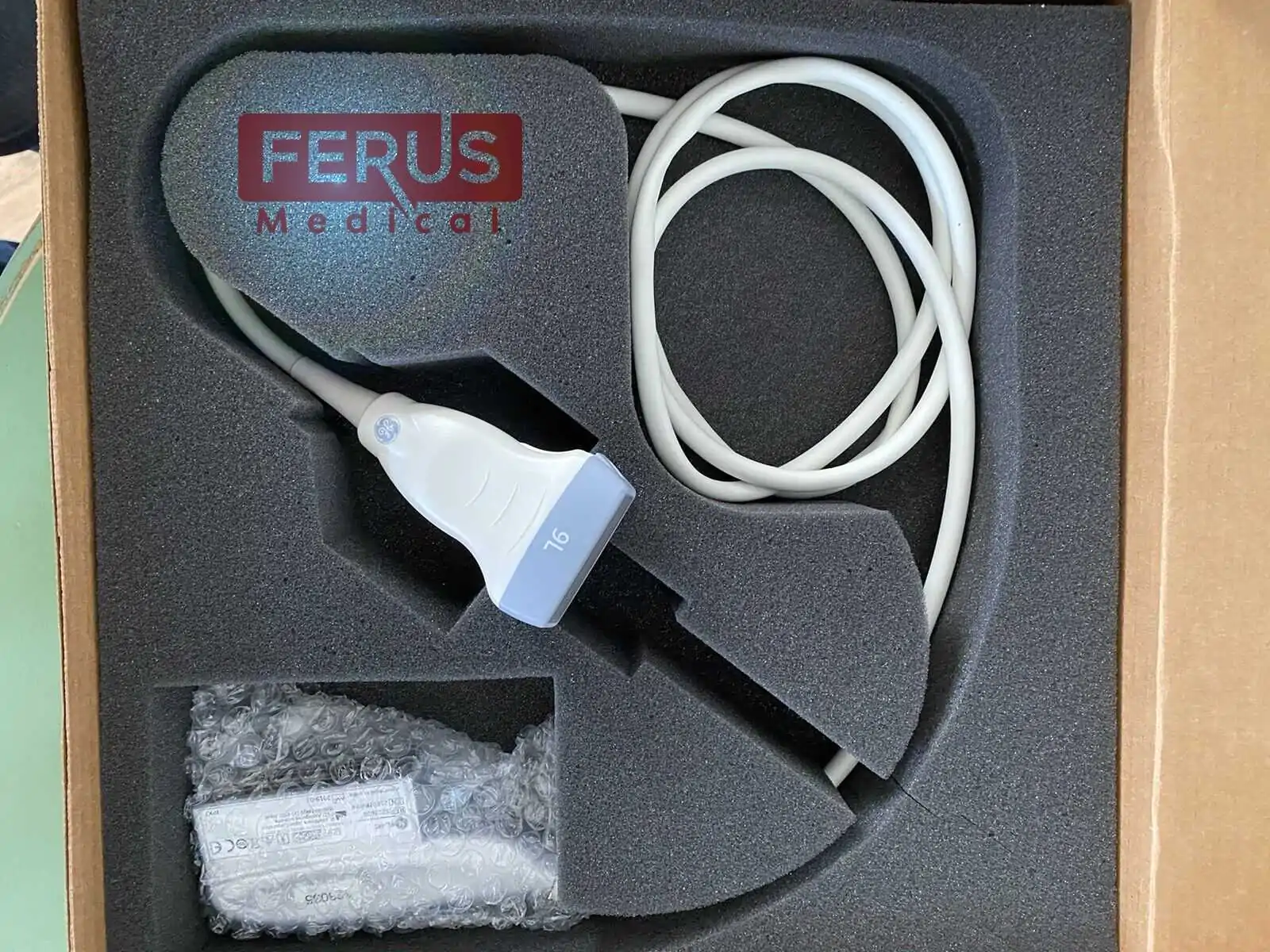

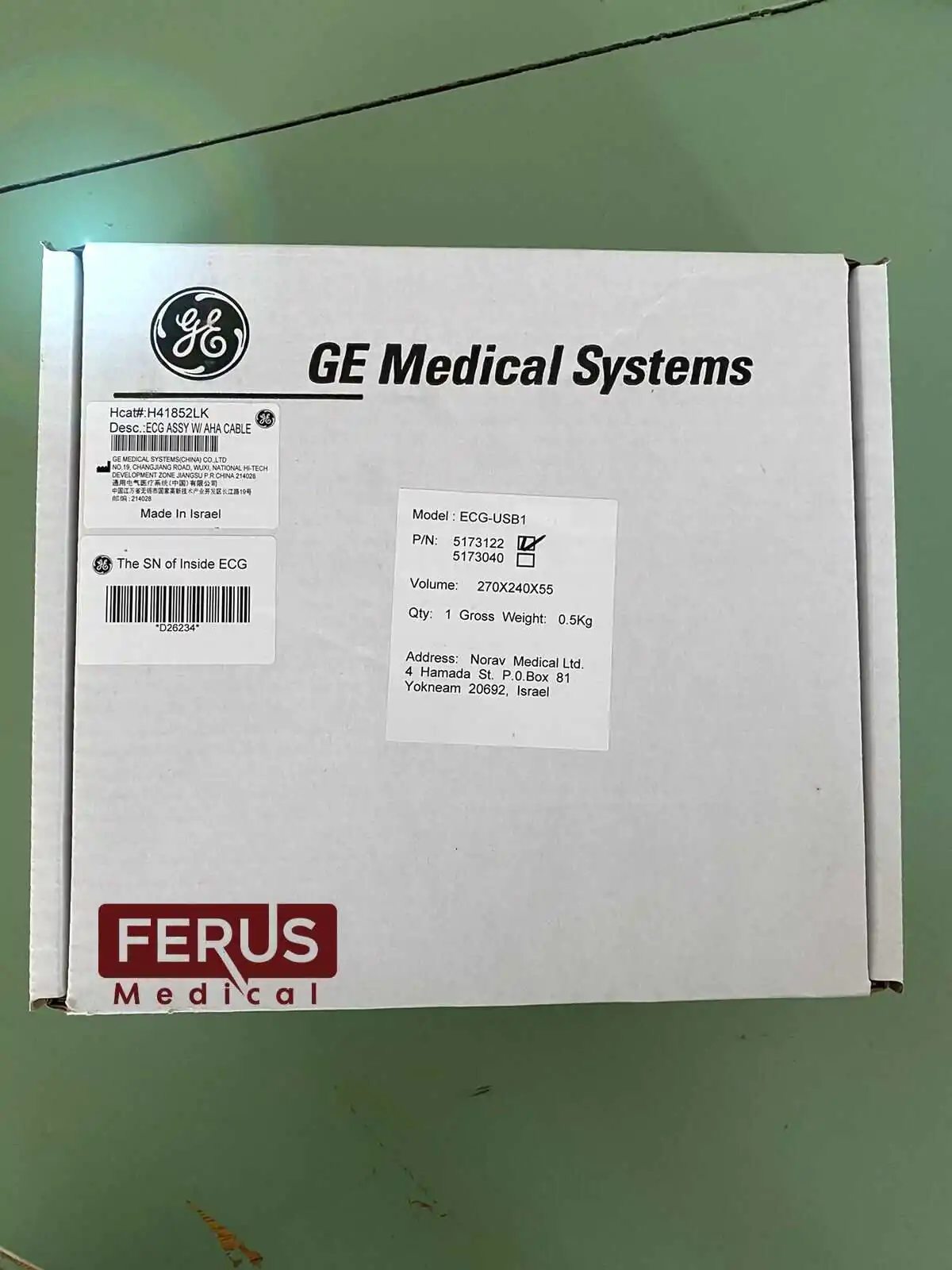

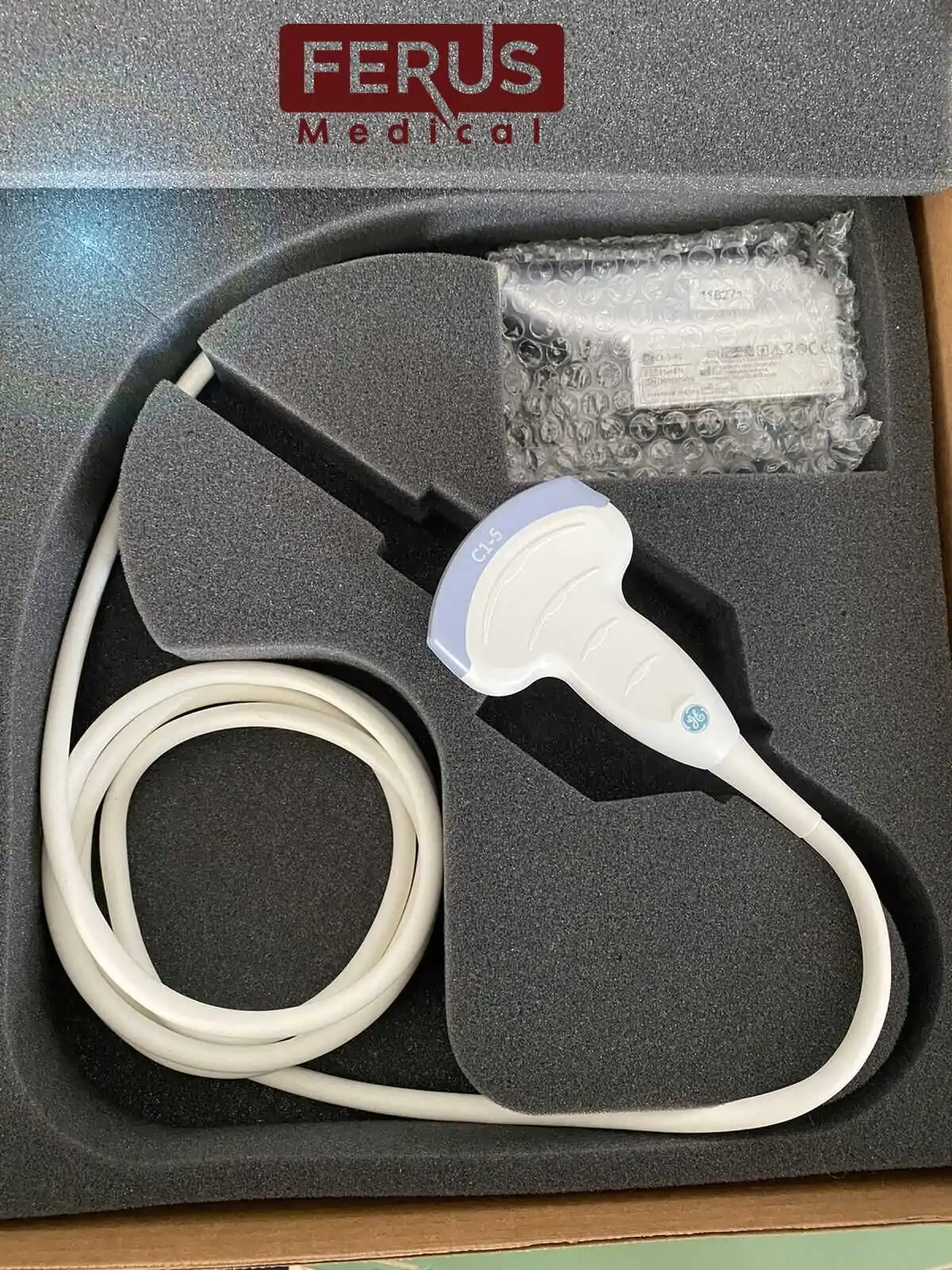

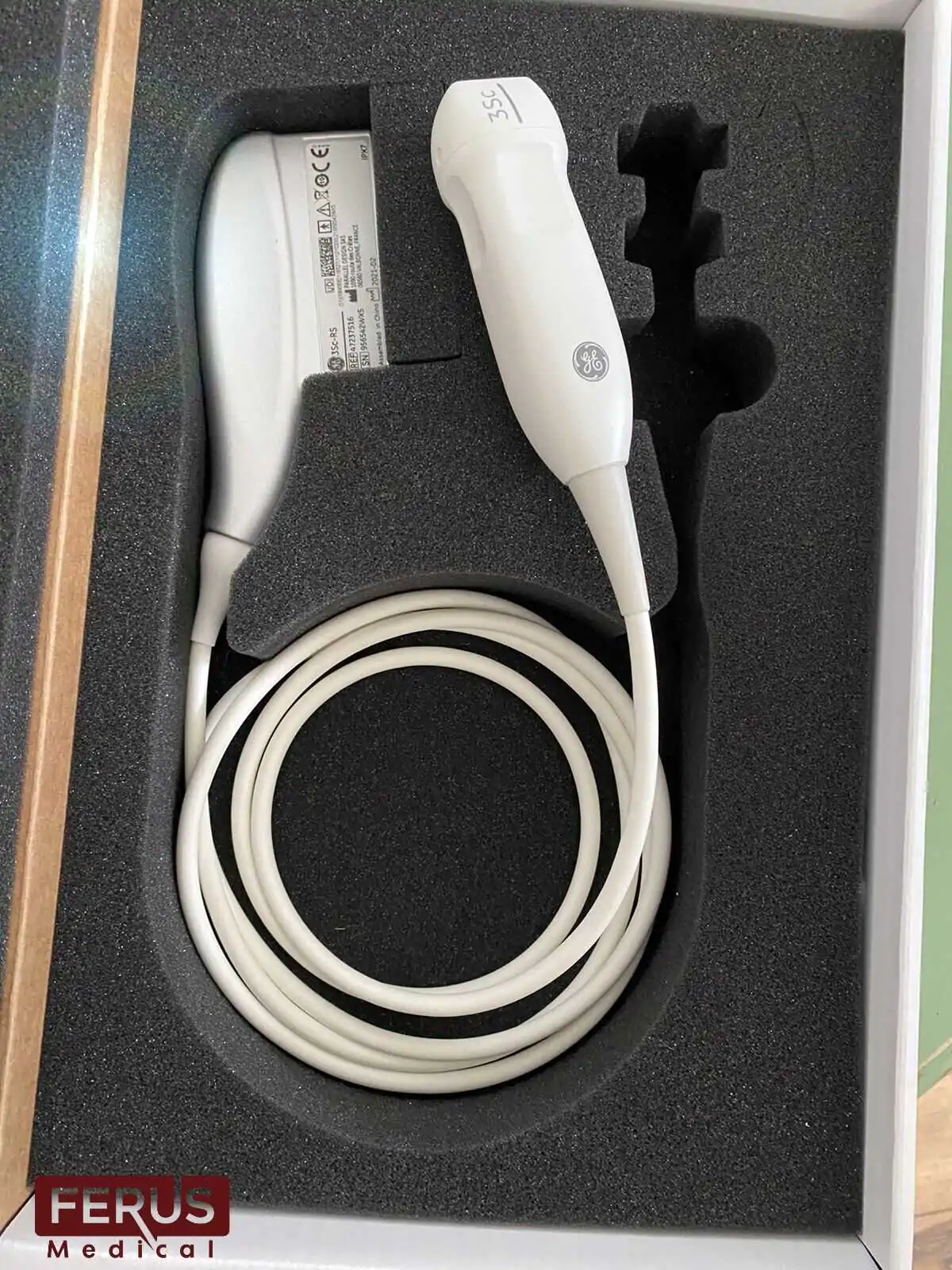

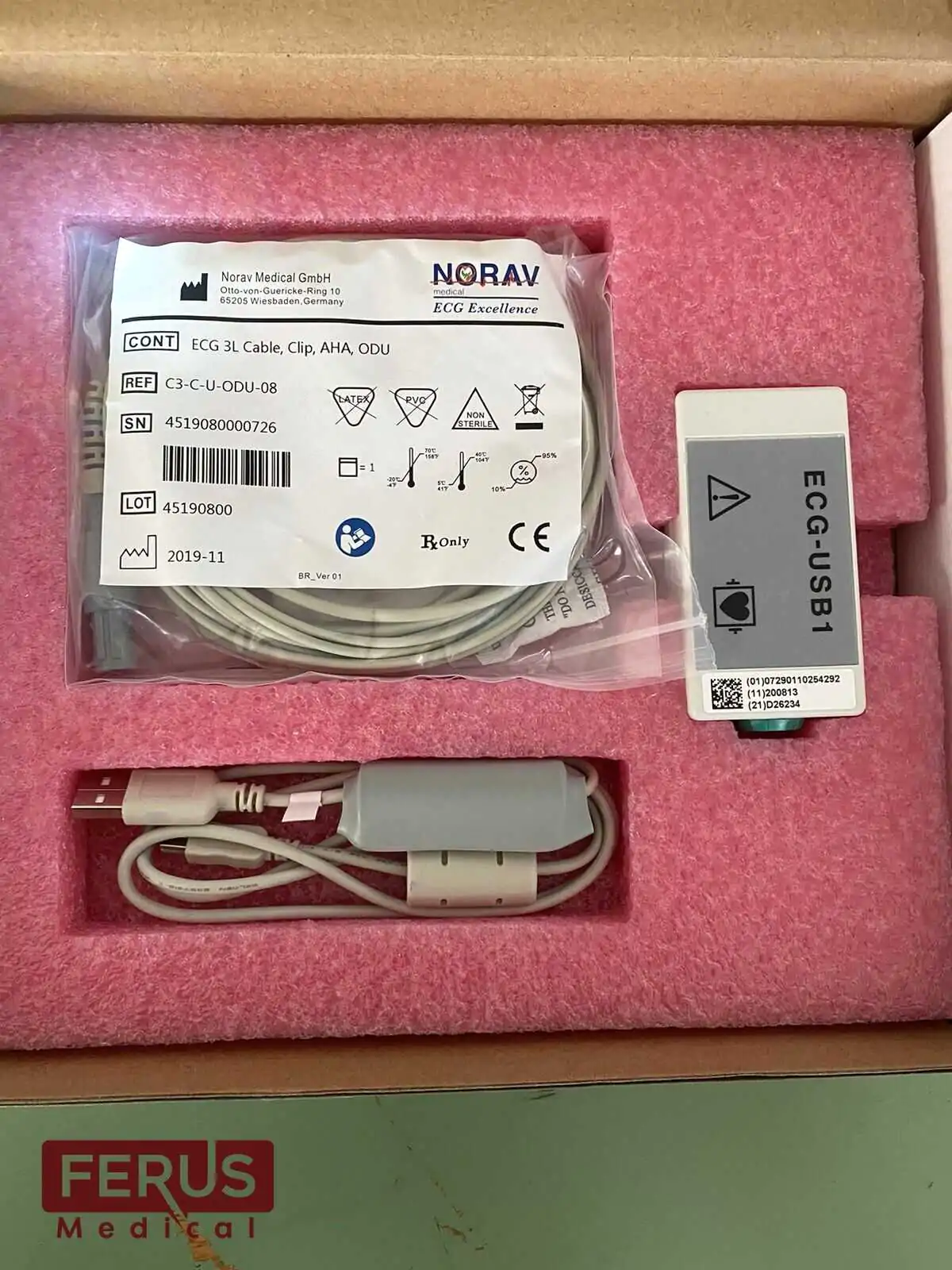

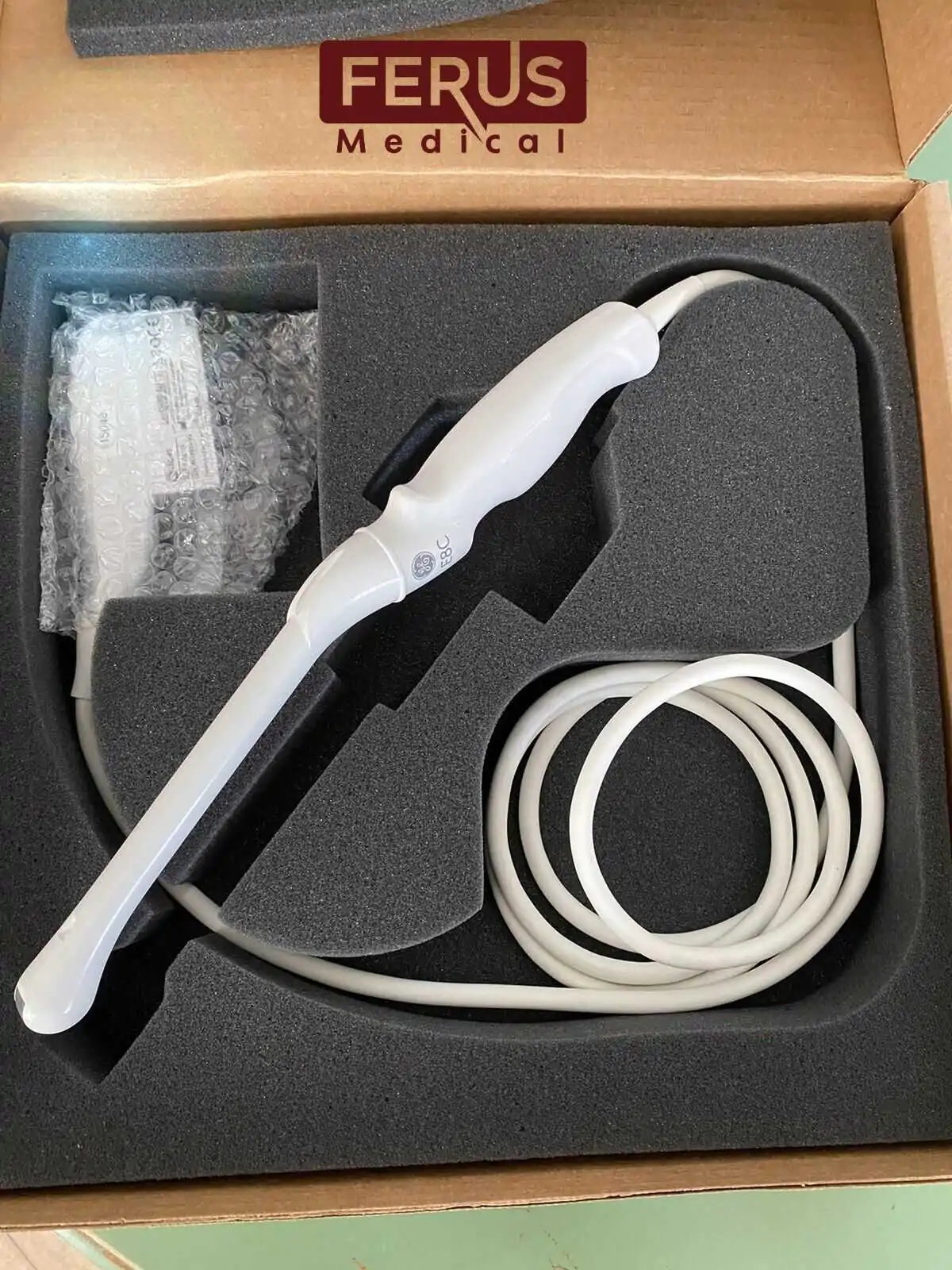

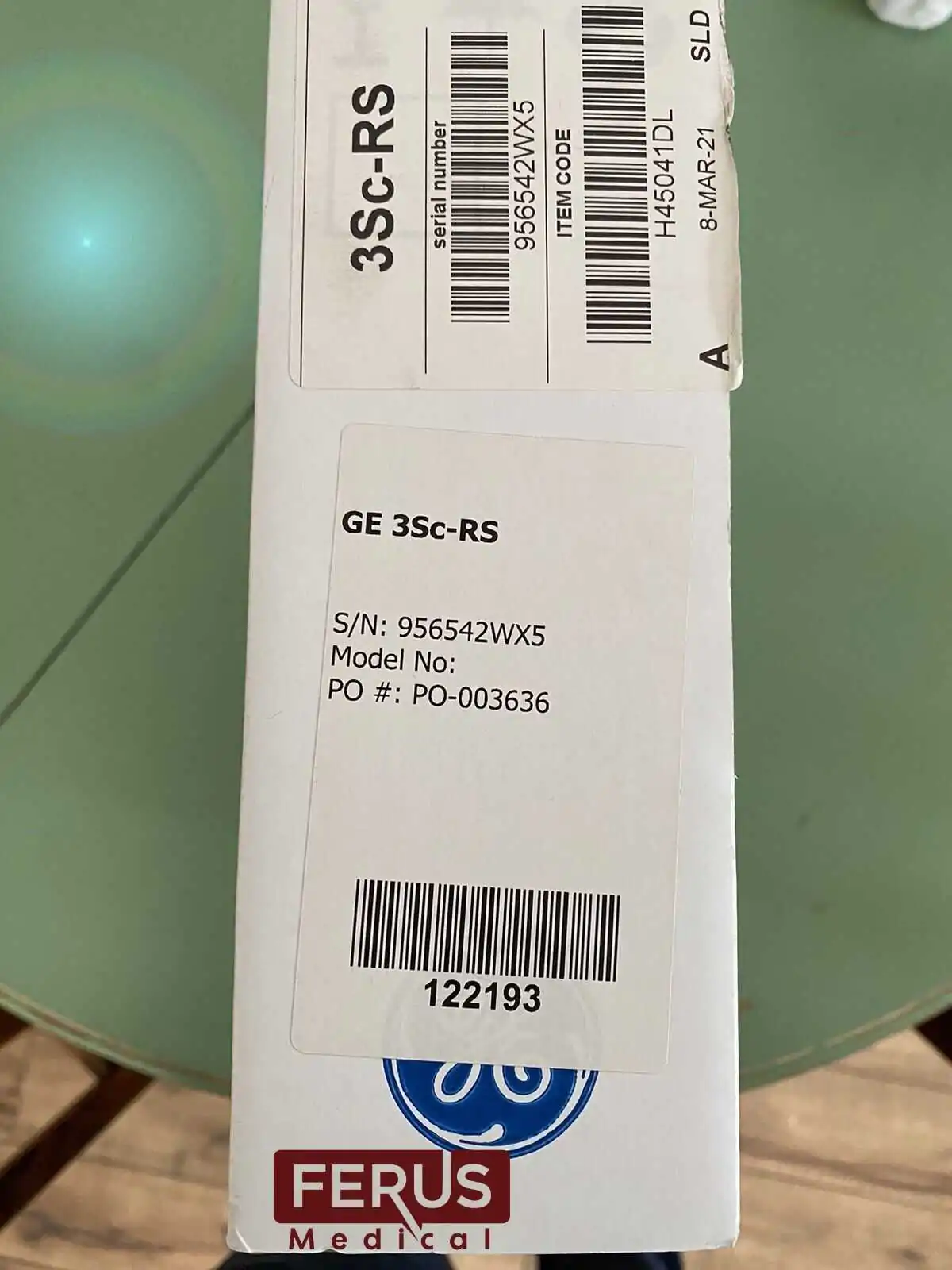

• Four NEWProbes-   E8C, C1-5, 9L, 3ScECG Leads.
• Still under warranty from GE.

Reference

• Manufacturer Information
